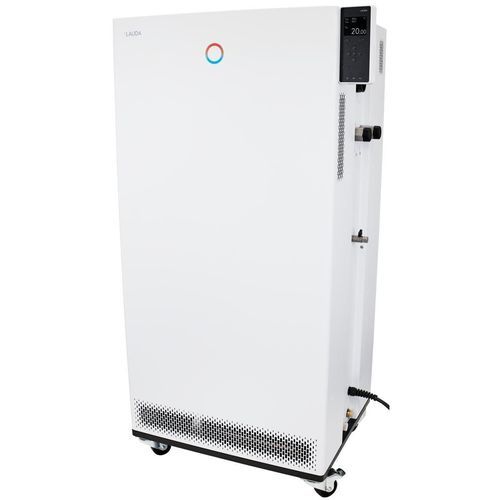

TFT graphic display temperature control unit Integral IN 1830 TW

programmablewaterfluid circulation

Overview
The Integral IN 1830 TW is a process thermostat with integrated cooling designed for dynamic temperature control of external circuits. Its modular interface concept allows standard Ethernet, USB and Pt100 connections and optional expansion with additional communication modules.

Key features

• Process thermostat with integrated cooling system for dynamic tempering of external circuits
• Management of heat-transfer fluids with stored fluid properties
• Fully electronic continuous PID controller for internal and external control
• Low-level detection and adjustable over-temperature protection with audible alarm (suitable for flammable and non-flammable liquids)
• Standard USB and Ethernet interfaces; upgradable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Programmer: 150 temperature/time segments, separable into 5 programs
• Condenser cooling: water; SmartCool for energy-saving digital cooling management
• Coloured TFT display showing actual and set values with graphical temperature profile
• Integrated web server for browser-based operation (PC, tablet, smartphone) with authentication and encryption
• SelfCheck assistant for system diagnosis and PowerAdapt for optimised heating usage
• Extremely powerful pressure pump; optional additional internal circulation pump; adjustable bypass for pressure limiting
• Remote fault signalling via floating contact; digital pump pressure display
• Operates with conventional HFC refrigerants in accordance with EU regulation (EU) 573/2024

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 150 °C
• Temperature stability: 0.1 ± K

Technical data (selection)

• Heater power max.: 16 kW
• Max. power consumption: 18 kW
• Current consumption: 25 A
• Max. discharge pressure: 5.5 bar (50 Hz), 7.0 bar (60 Hz)
• Max. pump flow (pressure): 60 L/min (50 Hz); 70 L/min (60 Hz)
• Min./Max. filling volume: 9.7 L / 25.5 L
• In/Outlet connection thread (outside): M38 x 1.5; hose size: 1”
• Cooling water connection thread (outside): 3/4” — recommended cooling water temp.: 15 °C — max: 30 °C — flow: 29 L/min
• Dimensions (WxDxH): 760 x 650 x 1605 mm — Weight: 244 kg
• Noise level: 67 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz — Power cord with plug (IEC 60309, 5-pol, CEE, red, 32 A)

Cooling capacity (selection)
150 °C | Thermal oil | 19 kW | 19 kW
100 °C | Thermal oil | 19 kW | 19 kW
20 °C | Ethanol | 19 kW | 19 kW
10 °C | Ethanol | 15 kW | 15 kW
0 °C | Ethanol | 11.5 kW | 11.5 kW
-10 °C | Ethanol | 7.5 kW | 7.5 kW
-20 °C | Ethanol | 5 kW | 5 kW
-30 °C | Ethanol | 2.7 kW | 2.7 kW


Part number
Part no.: L002670

Applications / Benefits

• Designed for industrial process tempering, pilot plants and laboratory applications requiring wide temperature range and precise stability
• Modular interfaces and web server enable integration into automation and remote monitoring systems
• Multiple safety functions and program capability support operation with various heat-transfer media, including flammable media under controlled conditions
