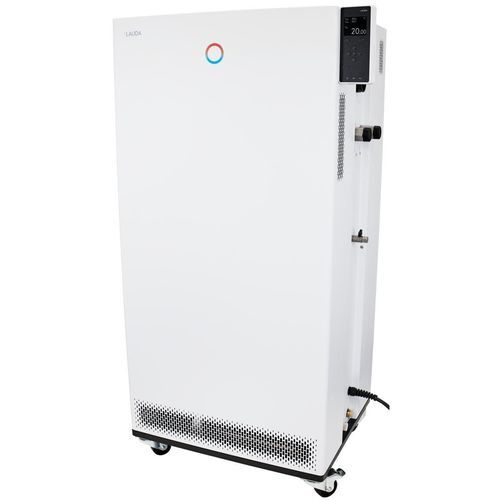

TFT graphic display temperature control unit Integral IN 1330 TW

digitaloilprogrammable

Product description
With the modular interface concept, the Integral IN 1330 TW process thermostat integrates into industrial processes with high flexibility. The unit is supplied with standard interfaces (Ethernet, USB, integrated Pt100 port) and can be extended with up to two additional interface modules.

Features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat transfer fluids with stored material data
• Fully electronic continuous PID controller for internal and external control
• Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
• USB and Ethernet interfaces as standard; data export via USB stick
• Upgradeable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Digital display of pump pressure
• Condenser cooled by water
• Coloured TFT display showing actual and set values plus graphical temperature profile
• Easy input via cursor and soft keys; additional Tmax key for overtemperature protection
• Self-adapt function to determine control parameters
• Extremely powerful pressure pump
• Integrated port for external Pt100; second external Pt100 possible via interface module
• Programmer with 150 temperature/time segments, separable into 5 programs
• Integrated web server for browser-based operation in local networks (PC, tablet, smartphone) with authentication and encryption
• Uses HFC refrigerants in compliance with EU Regulation 573/2024 for F-gases
• Clear-text menu navigation; six selectable languages (DE, EN, FR, ES, IT, RU)
• SelfCheck assistant for system diagnostics
• PowerAdapt system to use maximum permitted heating power without overloading supply
• Additional pump for internal circulation
• Remote fault indication via floating contact
• Adjustable bypass for pressure limiting
• SmartCool energy-saving digital cooling management with compressor on/off control

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 150 °C
• Temperature stability: 0.1 ± K

Technical data (selection)
Working temperature range: -32 … 150 °C
Ambient temperature range: 5 … 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 16 kW
Max. power consumption: 18 kW
Current consumption: 25 A
Max. discharge pressure: 5.5 bar (50 Hz), 7.0 bar (60 Hz)
Max. pump flow (pressure): 60 L/min (50 Hz); 70 L/min (60 Hz)
In/Outlet connection thread (outside): M38 x 1.5
Hose size In/Outlet: 1"
Min. filling volume: 9.7 L
Max. filling volume: 25.5 L
Water cooling connection thread (outside): 3/4"
Recommended cooling water temperature: 15 °C
Cooling water temperature max.: 30 °C
Cooling water flow rate: 15.5 L/min
Cooling water pressure difference min.: 0.8 bar
Max. cooling water pressure: 10 bar
Dimensions (WxDxH): 760 x 650 x 1605 mm
Weight: 225 kg
Noise level: 62 dB(A)
Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 32 A)

Cooling capacity (examples)
100 °C | Thermal oil | 13 kW (50 Hz) | 13 kW (60 Hz)
20 °C | Ethanol | 13 kW | 13 kW
10 °C | Ethanol | 10 kW | 10 kW
0 °C | Ethanol | 7.6 kW | 7.6 kW
-10 °C | Ethanol | 5.4 kW | 5.4 kW
-20 °C | Ethanol | 3.4 kW | 3.4 kW
-30 °C | Ethanol | 1.7 kW | 1.7 kW


Key specifications

• Model: Integral IN 1330 TW
• Device type: Process thermostat with integrated cooling system
• Interfaces (standard): Ethernet, USB, integrated Pt100; expandable via modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Controller: Fully electronic continuous PID, Self-adapt
• Display: Coloured TFT; programmer 150 segments / 5 programs
• Pump: Max. flow 60 L/min (50 Hz) / 70 L/min (60 Hz)
• Filling volume: 9.7 – 25.5 L
• Dimensions / Weight: 760 x 650 x 1605 mm / 225 kg
• Noise level: 62 dB(A)
