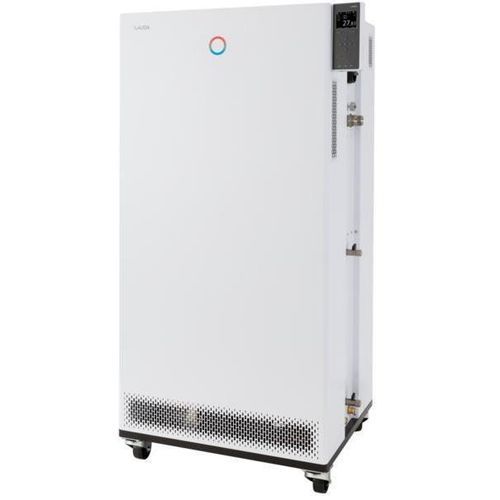

TFT graphic display temperature control unit Integral IN 1590 XTW

with touchscreenwith remote controloil

Product overview
Operate the Integral process thermostat via the built-in coloured TFT display or optionally with an intuitive touch control unit. The unit combines an integrated refrigeration system with a powerful LAUDA Variopump to provide dynamic temperature control for external circuits from -90 °C to 220 °C.

Features

• Process thermostat with integrated refrigeration for dynamic tempering of external circuits
• Management of heat transfer media with stored fluid properties
• Fully electronic continuous PID controller for internal and external control
• Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable fluids
• Port for external Pt100 integrated; second external Pt100 possible via interface module
• Integrated and adjustable bypass
• Very small internal volume and large non-thermostated expansion vessel (cold fluid layer system)
• Condenser cooling: water
• Coloured TFT display showing actual & set values and temperature profile graph
• Easy input via cursor and soft keys; dedicated Tmax key for overtemperature
• Self-adapt function to determine optimal control parameters
• LAUDA Variopump (pressure pump) with 8 selectable output levels or outflow pressure control
• Remote fault indication via floating contact
• Programmer with 150 temperature/time segments, separable into up to 5 programs
• Integrated web server for browser-based operation via PC, tablet or smartphone with authentication and encryption
• Uses conventional refrigerants (HFCs) in accordance with EU F-gas regulation (EU) 573/2024
• Clear-text menu navigation, six selectable languages: DE, EN, FR, ES, IT, RU
• SelfCheck Assistant for system diagnosis
• PowerAdapt system to optimise heating usage relative to available power supply
• USB and Ethernet interfaces as standard; data export via USB
• Option to add up to 2 additional interfaces (RS232/485, Profibus, analogue, contact or EtherCAT)
• Digital pump pressure display
• SmartCool system for energy-saving digital cooling management including compressor on/off control

Working range

• Min. working temperature: -90 °C
• Max. working temperature: 220 °C
• Temperature stability: 0.05 ± K

Cooling capacity (selected values)
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
200 °C | 8 | Thermal oil | 18.5 kW | 18.5 kW
100 °C | 8 | Thermal oil | 18.5 kW | 18.5 kW
20 °C | 8 | Ethanol | 18.5 kW | 18.5 kW
10 °C | 8 | Ethanol | 15 kW | 16 kW
0 °C | 8 | Ethanol | 11.5 kW | 12.2 kW
-10 °C | 8 | Ethanol | 8.7 kW | 9 kW
-20 °C | 4 | Ethanol | 8.5 kW | 9 kW
-30 °C | 4 | Ethanol | 8.5 kW | 9 kW
-40 °C | 4 | Ethanol | 7.5 kW | 8.5 kW
-50 °C | 4 | Ethanol | 6 kW | 7 kW
-60 °C | 4 | Ethanol | 4 kW | 5.2 kW
-70 °C | 4 | Ethanol | 2.2 kW | 3.4 kW
-80 °C | 4 | Ethanol | 0.9 kW | 1.5 kW
-90 °C | 2 | Ethanol | 0.35 kW | 0.5 kW

Technical specifications (excerpt)

• Working temperature range: -90 ... 220 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 12 kW
• Max. power consumption: 19 kW
• Current consumption: 30 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow (pressure): 65 L/min
• In/outlet connection thread (outside): M38 x 1,5
• Inlet/outlet hose size: 1"
• Min. filling volume: 10 L
• Max. filling volume: 30.6 L
• Water cooling connection thread (outside): 3/4"
• Recommended cooling water temperature: 15 °C
• Cooling water temperature max.: 30 °C
• Cooling water flow rate: 26 L/min
• Cooling water pressure difference min.: 0.8 bar
• Maximum cooling water pressure: 10 bar
• Dimensions (WxDxH): 760 x 650 x 1605 mm
• Weight: 356 kg
• Noise level: 65 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 32 A)
