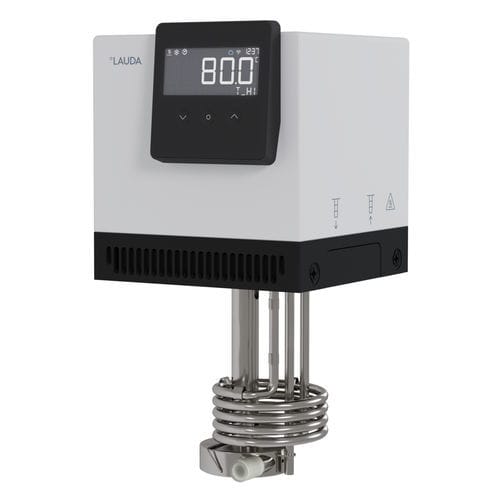

Electronic thermostat Universa ECO

programmable230VACwireless

Product overview
LAUDA Universa immersion/bath circulation thermostat with advanced electronics for precise temperature control in industrial and laboratory applications. Designed for integration into networked monitoring and remote maintenance systems.

Key features

• Bath circulation thermostat for standard temperature control tasks up to 100 °C, intuitive 3‑button operation.
• Reliable circulation pump with flow reduction for adapted volumetric flow and constant pressure.
• Standard integrated Ethernet and USB interfaces for stable data communication.
• Integrated Wi‑Fi communication (import and use only in certified countries/regions: USA, Canada, EU incl. UK and Switzerland, India).
• Modular design with interchangeable control head and heating/cooling base for flexible adaptation.
• Integrated timer with countdown for time‑controlled temperature processes.
• Wireless connectivity (WLAN) for connection to PC, tablet and smartphone.
• Bright VA LC two‑line display providing clear readout.
• Remote control and monitoring via integrated web server, LAUDA Command app or browser‑based access; secured by PKI and two‑factor authentication; connection to LAUDA.LIVE for cloud‑based analysis and remote maintenance.
• Safety functions: low‑level protection and overheating protection for use with non‑flammable liquids; audible and visual alarms.

Working range
Min. working temperature: 35 °C
Max. working temperature: 100 °C
Temperature stability: 0.05 ± K
Working range with water cooling: 20 ... 100 °C
Operating temperature range: -30 ... 100 °C
Ambient temperature range: 5 ... 40 °C

Technical data (summary)
Max. power consumption: 2.4 kW
Current consumption: 10 A
Max. discharge pressure: 0.2 bar
Max. pump flow: 15 L/min
Dimensions (W x D x H): 195 x 231 x 307 mm
Weight: 4 kg
Power supply: 200-240 V, 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Applications / Notes
Suitable for standard temperature control tasks and for integration into networked monitoring and remote maintenance environments. Modular Universa system replaces previous ECO/PRO/Proline lines and is compatible with LAUDA digital services and the LAUDA Command app.

Technical specifications

• Device type: Immersion / bath circulation thermostat
• Working temperature range: 35 ... 100 °C (20 ... 100 °C with water cooling)
• Operating temperature range: -30 ... 100 °C
• Temperature stability: 0.05 ± K
• Max. power consumption: 2.4 kW
• Current consumption: 10 A
• Max. discharge pressure: 0.2 bar
• Max. pump flow: 15 L/min
• Dimensions (W x D x H): 195 x 231 x 307 mm
• Weight: 4 kg
• Power supply / plug (example): 200-240 V, 50/60 Hz / Power cord with angled plug (CEE7/7)
• Connectivity: Ethernet, USB, integrated Wi‑Fi, web server, LAUDA Command app, LAUDA.LIVE compatibility
• Safety: low‑level protection, overheating protection, audible and visual alarms
