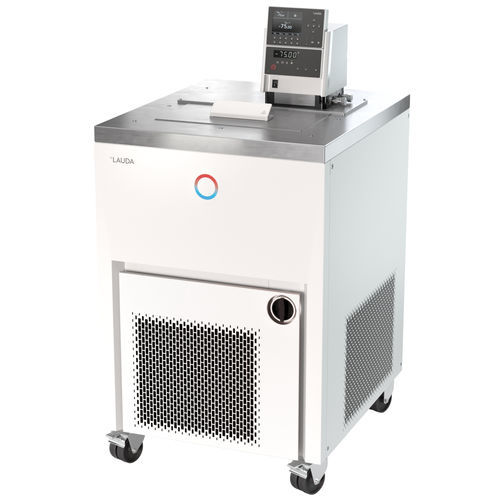

Circulation cryostat Proline Kryomate RP 3090 CW

Product overview
The Proline Kryomate RP 3090 CW is an industrial cryothermostat available in air- and water-cooled versions. It features large bath openings and bath volumes typically 23–31 L (variants up to ≈30–40 L), providing controlled tempering from -90 °C to 200 °C.

Key features

• Thermostatic circulating bath with microprocessor control and integrated cooling
• User input via cursor keys and numeric softkeys; additional Tmax key for overtemperature
• SelfCheck Assistant for system diagnosis and fault indication
• Low-level and overtemperature protection for use with non-flammable heat transfer liquids
• Programmer with 150 temperature/time segments, configurable as up to 5 programs
• Adjustable bath circulation to match application needs; LAUDA Vario pump with 4 selectable output steps
• Electronically controlled heating of bath edge and bridge to prevent condensation and icing
• High-resolution back-lit graphic LCD with multiple display modes; detachable command console for remote operation
• Fully electronic continuous controller with PID action; standard optically decoupled RS-232/485 interface
• Timer function for switch-on, standby or program execution; pump connectors side and rear with installed bypass
• SmartCool energy-saving digital cooling management; PowerAdapt for optimized heat usage within supply limits
• Optionally upgradable with up to 2 additional interfaces (Profibus, analogue/contact modules, Ethernet-USB)
• Uses traditional refrigerants (HFCs) in accordance with EU regulation 573/2024

Working range

• Min. working temperature: -90 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) - summary
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz
200 °C | 2 | Thermal oil | 4 kW
20 °C | 2 | Ethanol | 4 kW
0 °C | 2 | Ethanol | 3.7 kW
-20 °C | 2 | Ethanol | 3.1 kW
-30 °C | 2 | Ethanol | 2.7 kW
-40 °C | 2 | Ethanol | 2 kW
-50 °C | 2 | Ethanol | 1.6 kW
-60 °C | 2 | Ethanol | 1.3 kW
-70 °C | 2 | Ethanol | 0.8 kW
-80 °C | 2 | Ethanol | 0.5 kW
-90 °C | 2 | Ethanol | 0.15 kW


Variants and notes

• Available in air-cooled and water-cooled configurations; condenser cooling (water) for CW variant
• Large bath openings and several bath volume options depending on model
• Optional interfaces and configuration for remote monitoring and process integration

Technical specifications

• Model: Proline Kryomate RP 3090 CW
• Working temperature range: -90 … 200 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.05 ± K
• Heater power (max): 3.5 kW
• Max. power consumption: 7 kW; current consumption: 16 A
• Max. discharge pressure: 0.5 bar; max. pump flow: 19 L/min
• Inlet/outlet thread (outside): M16 x 1
• Bath volume (min./max.): 23.0 / 31.0 L
• Recommended cooling water temp.: 15 °C; cooling water flow: 11.7 L/min; max. cooling water pressure: 10 bar
• Dimensions (W x D x H): 600 x 700 x 1216 mm; Weight: 160 kg
• Power supply (example variant): 400 V; 3/N/PE; 50 Hz; power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A)
