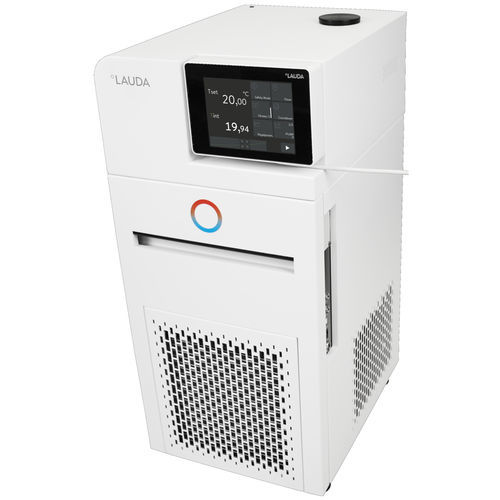

High temperature heating circulator PRO RP 250 EC

Product description
The PRO circulation and process thermostats are designed for external applications and are specified for high-temperature operation; see technical data for the operating range. Low filling volume enables rapid temperature changes in the connected application. The compact tower design reduces footprint. An integrated cooling coil is fitted as standard for counter-cooling. All models include a pressure/suction pump. Hybrid cooling of the refrigerating system permits cooling by ambient air and, where required, additional cooling water.

Features

• Thermostatic circulator with advanced microprocessor control and integrated cooling system
• Detachable command console for remote operation
• Timer and countdown functions
• SelfCheck Assistant for system diagnostics
• Fully electronic continuous PID controller for internal and external control
• Tower design with small footprint
• Bath vessel in stainless steel (insulated, with overflow and drain tap)
• Uses traditional refrigerants (HFCs) compliant with EU Regulation 573/2024 on fluorinated gases
• Large 5.7" multi-touch colour display
• User administration for up to 20 users
• EasyUse system for simplified operation of the unit
• USB and Ethernet interfaces supplied as standard
• PowerAdapt system to use the maximum available heating power without overloading the supply
• LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, pump connections at rear
• SmartCool system for energy-saving digital cooling management including compressor on/off control
• Data import/export via USB
• Low-level detection and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
• Retrofittable with communication interfaces (RS‑232/485, Profibus, EtherCAT; analogue or contact modules)
• Programmer: up to 100 programs, up to 50 segments each
• Low filling volume enables rapid temperature changes
• Hybrid condenser cooling (complementary heat removal with cooling water)

Working range
Min. working temperature: -50 °C
Max. working temperature: 200 °C (see technical data)
Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range: -50 ... 200 °C
Operating temperature range: -50 ... 200 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 2.5 kW
Max. power consumption: 3.7 kW
Current consumption: 16 A
Max. discharge pressure: 0.7 bar
Pump suction max.: 0.4 bar
Max. pump flow (pressure): 22 L/min
In/Outlet connection thread (outside): M16 x 1
In/Outlet Ø olives: 13 mm
Min. filling volume: 2.4 L
Max. filling volume: 4.4 L
Dimensions (WxDxH): 300 x 430 x 675 mm
Weight: 48 kg
Power supply: 230 V; 50 Hz
Power plug: Power cord with angled plug (CEE7/7)

Cooling capacity (50 Hz)
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz
20 °C | 8 | Ethanol | 1.5 kW
10 °C | 8 | Ethanol | 1.44 kW
0 °C | 8 | Ethanol | 1.2 kW
-10 °C | 8 | Ethanol | 0.84 kW
-20 °C | 4 | Ethanol | 0.54 kW
-30 °C | 4 | Ethanol | 0.29 kW
-40 °C | 4 | Ethanol | 0.11 kW
-45 °C | 4 | Ethanol | 0.04 kW
-50 °C | 2 | Ethanol | 0.02 kW

Datasheet
Data sheet PRO RP 250 EC is available for this product (product-specific PDF).

Characteristics / technical specifications

• Model: PRO RP 250 EC (Part no.: L002495)
• Working temperature range: -50 ... 200 °C
• Temperature stability: 0.05 ± K
• Heater power (max): 2.5 kW
• Max. power consumption: 3.7 kW
• Cooling example: up to 1.5 kW cooling capacity at 20 °C (Ethanol, pump level 8)
• Filling volume: min. 2.4 L / max. 4.4 L
• Pump performance: up to 22 L/min, LAUDA Varioflex (8 levels)
• Connections: M16 x 1 thread (outside), olives Ø 13 mm
• Dimensions (WxDxH): 300 x 430 x 675 mm; Weight: 48 kg
• Power supply / plug (example variant shown): 230 V; 50 Hz, power cord with angled plug (CEE7/7)
