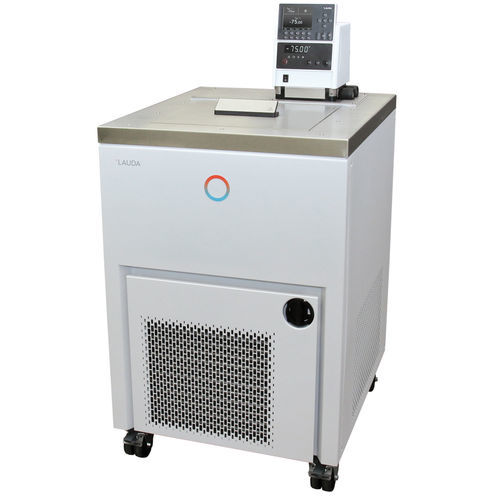

Circulation cryostat Proline Kryomate RP 4090 CW

Product description
The Proline Kryomate RP 4090 CW is a cryothermostat (bath circulator) available in air- or water-cooled versions. It features a large bath opening and bath volumes of 32.0 and 44.0 liters, suited for precision temperature control from -90 ... 200 °C.

Features

• Thermostatic bath/circulator with latest microprocessor control and integrated cooling system
• Data entry via cursor keys, numeric softkeys or both; additional Tmax key for overtemperature
• SelfCheck Assistant for system diagnostics
• Low-level and overtemperature protection for use with non-flammable liquids
• Programmer with 150 temperature/time segments split into up to 5 programs
• Adjustable bath circulation to match the application
• Electronically controlled bath-edge and bridge heating to prevent condensation and freezing at low temperatures
• Back-lit graphic LCD with high resolution and selectable display modes
• Detachable command console for remote operation
• Fully electronic continuous PID controller for internal and external control
• Optically isolated RS-232/485 interface integrated as standard
• Timer for switch-on, standby or program execution
• Pump connectors at side and rear with installed bypass
• Condenser cooling: water
• Additional green LED temperature display
• EasyUse system for simplified operation
• PowerAdapt to use maximum permissible heating power without overloading supply
• Upgradeable with up to 2 additional interfaces (RS-232/485, Profibus, analogue/contact modules, Ethernet-USB)
• LAUDA Vario pump with 4 selectable output steps
• SmartCool energy-saving digital cooling management with compressor on/off control
• Uses conventional refrigerants (HFCs) in accordance with Regulation (EU) 573/2024

Working range

• Min. working temperature: -90 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range | -90 ... 200 °C
Ambient temperature range | 5 ... 40 °C
Temperature stability | 0.05 ± K
Heater power max. | 3.5 kW
Max. power consumption | 7 kW
Current consumption | 16 A
Max. discharge pressure | 0.5 bar
Max. pump flow (pressure) | 19 L/min
In/Outlet connection thread (outside) | M16 x 1
Min. / max. bath volume | 32.0 / 44.0 L
Recommended cooling water temperature | 15 °C
Cooling water flow rate | 11.7 L/min
Maximum cooling water pressure | 10 bar
Dimensions (WxDxH) | 600 x 700 x 1216 mm
Weight | 160 kg
Power supply | 400 V; 3/N/PE; 50 Hz
Power plug | Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)

Specifications

• Model: Proline Kryomate RP 4090 CW
• Brand: LAUDA
• Working temperature range: -90 ... 200 °C
• Temperature stability: 0.05 ± K
• Bath volume (min/max): 32.0 / 44.0 L
• Heater power max.: 3.5 kW
• Max. power consumption: 7 kW
• Current consumption: 16 A
• Max. pump flow: 19 L/min
• In/Outlet thread: M16 x 1
• Cooling: condenser cooled by water; recommended cooling water temp: 15 °C; flow rate: 11.7 L/min; max pressure: 10 bar
• Dimensions (WxDxH): 600 x 700 x 1216 mm
• Weight: 160 kg
• Power supply / Plug: 400 V; 3/N/PE; 50 Hz / Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)
