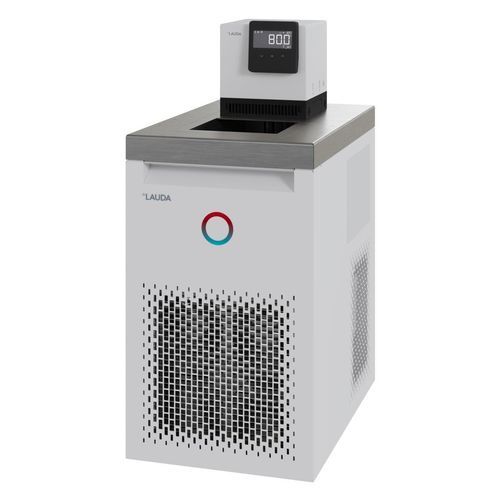

Refrigerated thermostatic bath Universa U 830 E

digital displaycirculationautomatic

Product description
The Universa ECO bath circulation cooling thermostat is supplied with a bath cover as standard. A front drain valve behind the ventilation grille permits safe and easy replacement of the tempering fluid.

Features

• Bath circulation cooling thermostat for temperature control tasks up to 100 °C.
• Circulation pump with flow reduction for adjustable volume flow and constant pressure.
• Integrated timer with countdown function for time-controlled tempering processes.
• Integrated WLAN enabling connection to PC, tablet and smartphone.
• Modular design with interchangeable control head and heating/cooling base for flexible adaptation.
• Energy-efficient refrigeration system: capillary tube technology with inverter compressor and speed-controlled fan; uses natural refrigerants.
• Remote control and monitoring via integrated web server, LAUDA Command app or browser; secured by PKI and two-factor authentication; LAUDA.LIVE compatibility for cloud data analysis and remote maintenance.
• Safety functions: low-level and overtemperature protection for use with non-flammable liquids; audible and visual alarms.
• Bright VA LC two-line display and intuitive 3-button operation.
• Standard integrated Ethernet and USB interfaces for data communication.

Working range

• Min. working temperature: -30 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Cooling capacity (tempering medium: Ethanol)
20 °C | 0.3 kW | 0.3 kW
10 °C | 0.275 kW | 0.275 kW
0 °C | 0.23 kW | 0.23 kW
-10 °C | 0.175 kW | 0.175 kW
-20 °C | 0.1 kW | 0.1 kW
-30 °C | 0.01 kW | 0.01 kW

Technical data (according to DIN 12876)

• Brand: LAUDA
• Model: Universa U 830 E
• Device type: Bath circulation cooling thermostat (Universa ECO)
• Working temperature range: -30 ... 100 °C
• Operating temperature range: -30 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Max. power consumption: 2.4 kW
• Current consumption: 10 A
• Bath opening (WxD): 150 x 150 mm
• Min. / max. bath volume: 6.4 / 8.5 L
• Max. discharge pressure: 0.2 bar
• Max. pump flow: 15 L/min
• Dimensions (WxDxH): 260 x 480 x 630 mm
• Weight: 28 kg
• Power supply: 220-240 V; 50/60 Hz
• Power plug: Power cord with angled plug (CEE7/7)
