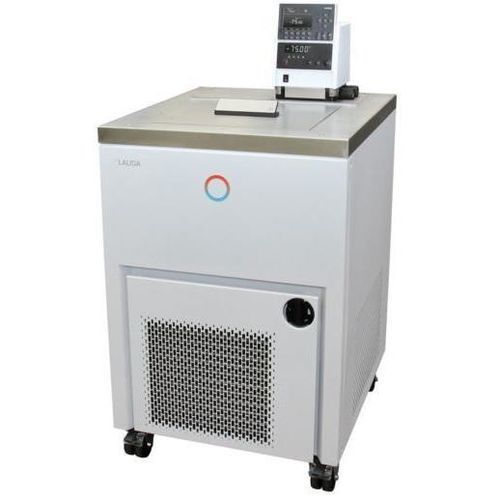

Circulation cryostat Proline Kryomate RP 4090 CW

Description
The air- and water-cooled Proline Kryomate RP 4090 CW are refrigerated circulators (cryothermostats) with large bath openings and selectable bath volumes (32.0 or 44.0 L). They combine microprocessor control with integrated cooling for precise temperature control in laboratory and industrial tempering applications.

Features

• Thermostatic bath/circulator with latest microprocessor technology and integrated cooling system
• Input via cursor keys, numeric soft keys or both; additional Tmax key for overtemperature
• SelfCheck assistant for system diagnosis
• Low-level and overtemperature protection for use with non-flammable liquids
• Programmer with 150 temperature/time segments, up to 5 separable programs
• Adjustable bath circulation to suit the application
• SmartCool system for energy-saving digital cooling management with compressor on/off control
• Uses traditional refrigerants (HFCs) in accordance with EU regulation (EU) 573/2024
• Back-lit graphic LCD display with selectable display modes
• Detachable command console for remote operation
• Fully electronic continuous PID controller for internal and external control
• Optically isolated RS232/485 interface standard
• Timer function for switch-on, standby or program execution
• Pump connectors on side and rear with installed bypass
• Electronically controlled heating of bath edge and bridge to prevent condensation and freezing
• Additional green LED temperature display
• EasyUse system for simple operation
• PowerAdapt system to optimize heating use within the available power supply
• Upgradeable with up to 2 interface modules (RS232/485, Profibus, analogue/contact modules, Ethernet-USB)
• LAUDA Vario pump with 4 selectable output steps; optional additional pump for external application (thread M38x1.5 O)
• Condenser cooling: water

Working range

• Min. working temperature: -90 °C
• Max. working temperature: 120 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz)
200 °C | Pump level 2 | Thermal oil | 4 kW
20 °C | Pump level 2 | Ethanol | 3.9 kW
0 °C | Pump level 2 | Ethanol | 3.6 kW
-20 °C | Pump level 2 | Ethanol | 3 kW
-30 °C | Pump level 2 | Ethanol | 2.6 kW
-40 °C | Pump level 2 | Ethanol | 1.9 kW
-50 °C | Pump level 2 | Ethanol | 1.5 kW
-60 °C | Pump level 2 | Ethanol | 1.2 kW
-70 °C | Pump level 2 | Ethanol | 0.7 kW
-80 °C | Pump level 2 | Ethanol | 0.4 kW
-90 °C | Pump level 2 | Ethanol | 0.05 kW

Technical specifications

• Model: Proline Kryomate RP 4090 CW
• Manufacturer: LAUDA
• Working temperature range: -90 ... 120 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 3.5 kW
• Max. power consumption: 7 kW (16 A)
• Max. discharge pressure: 0.9 bar
• Max. pump flow: 90 L/min
• Bath volume min./max.: 32.0 / 44.0 L
• Recommended cooling water temperature: 15 °C
• Cooling water flow rate: 11.7 L/min
• Max. cooling water pressure: 10 bar
• Dimensions (WxDxH): 600 x 700 x 1216 mm
• Weight: 160 kg
• Power supply: 400 V; 3/N/PE; 50 Hz; power cord with IEC 60309 plug (5-pin, CEE, red, 16 A)
