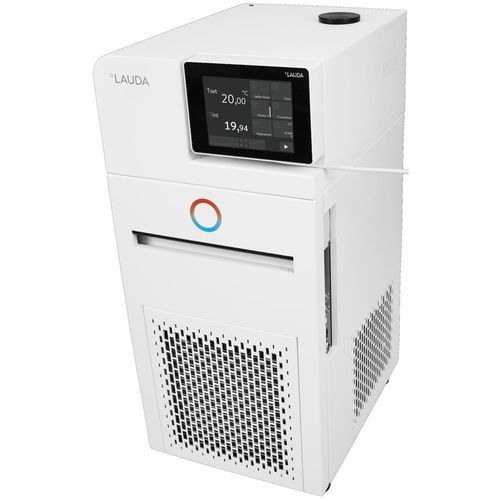

Heated circulator PRO RP 245 EC

Product description
The PRO heating and cooling circulating thermostats are designed for external applications up to 250 °C. Low filling volume permits rapid temperature changes in the connected application. The compact tower design saves installation space. An integrated cooling coil for counter-cooling is fitted as standard. Cooling models enable rapid temperature changes thanks to low filling volume and cooling capacities of 0.6 and 0.8 kW. All units are fitted with a pressure/suction LAUDA Varioflex pump.

Features

• Thermostatic circulator with microprocessor control and integrated cooling system
• Detachable command console for remote operation
• Timer and count-down function
• SelfCheck Assistant for system diagnosis
• Fully electronic continuous PID controller for internal and external control
• Tower design with small footprint
• Stainless steel bath vessel (insulated, with overflow and drain tap)
• Utilizes natural refrigerants
• Large 5.7-inch multi-touch color display
• User administration for up to 20 users
• EasyUse system for simple operation of the unit
• USB and Ethernet interfaces as standard
• PowerAdapt system to maximize usable heating power without overloading the supply
• LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, rear connections
• SmartCool system for energy-saving digital cooling management including compressor on/off control
• Data in- and export via USB
• Low-level and adjustable over-temperature protection with acoustic alarm for flammable and non-flammable liquids
• Retrofittable with interface modules (RS232/485, Profibus, EtherCAT, analogue or contact modules)
• Programmer with up to 100 programs, up to 50 segments each
• Low filling volume enables rapid temperature changes
• Hybrid cooling: complementary heat removal using cooling water

Working range
Min. working temperature: -45 °C
Max. working temperature: 200 °C
Temperature stability: 0.05 ± K

Cooling capacity (table, 50 Hz)
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz
20 °C | 8 | Ethanol | 0.8 kW
10 °C | 8 | Ethanol | 0.8 kW
0 °C | 8 | Ethanol | 0.8 kW
-10 °C | 8 | Ethanol | 0.53 kW
-20 °C | 4 | Ethanol | 0.34 kW
-30 °C | 4 | Ethanol | 0.15 kW
-35 °C | 4 | Ethanol | 0.09 kW
-40 °C | 4 | Ethanol | 0.04 kW
-45 °C | 2 | Ethanol | 0.01 kW

Technical features (according to DIN 12876)

• Model: PRO RP 245 EC
• Device type: Circulating thermostat / Circulating cryostat (PRO line)
• Filling volume: 2.4 - 4.4 L
• Working temperature range: -45 °C to 200 °C
• Max. heater power: 2.5 kW
• Max. power consumption: 3.7 kW
• Rated current: 16 A
• Max. discharge pressure: 0.7 bar
• Max. pump suction: 0.4 bar
• Max. pump flow: 22 L/min
• Inlet/outlet connection thread (outside): M16 x 1
• Inlet/outlet olives Ø: 13 mm
• Dimensions (WxDxH): 300 x 430 x 675 mm
• Weight: 43 kg
• Power supply (example variant shown): 230 V; 50 Hz
• Power plug (example variant shown): Power cord with angled plug (CEE7/7)
