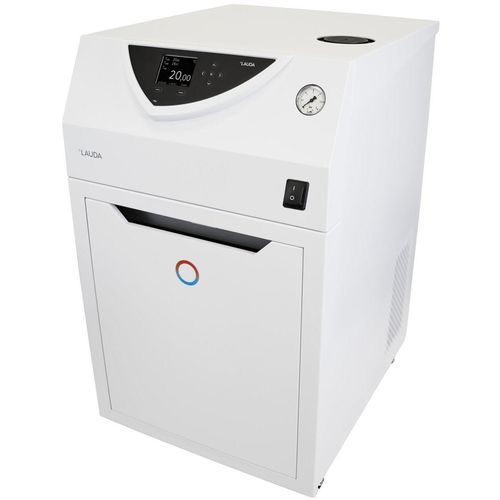

Electronic thermostat Variocool VC 3000 W

programmableG 3/4230VAC

Description
The Variocool VC 3000 W is a water-cooled process thermostat for temperature control in circulation and process applications. Models are available in air- or water-cooled versions and are fitted with steerable fixed castors. For tower-design units from the VC 5000, sound insulation or outdoor installation options are available.

Features

• Process thermostat suitable for use with non-flammable heat transfer liquids (water, water/glycol)
• Easy input via cursor and soft keys
• Powerful pressure pump
• Upgradeable with interface modules (analogue, contact, RS232/485, Profibus, Ethernet-USB)
• Filler opening on top and drain tap at the rear
• Condenser cooling: water
• Colour TFT display showing actual & set values and graphical temperature profile
• Fully electronic continuous PID controller
• USB interface as standard
• Integrated programmer with up to 150 segments, split into 5 programmes
• SmartCool system for energy-saving digital cooling management including compressor on/off control
• Electronic level indication and low-level alarm
• Remote fault indication via floating contact
• Adjustable bypass for pressure limiting
• Uses conventional refrigerants (HFCs) in accordance with EU regulation 573/2024

Working range

• Min. working temperature: -20 °C
• Max. working temperature: 80 °C
• Temperature stability: 0.05 ± K

Technical data (selected)
Working temperature range: -20 ... 80 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 1.5 kW
Max. power consumption: 2.6 kW
Current consumption: 14 A
Max. discharge pressure: 3.2 bar
Max. pump flow (pressure): 37 L/min
In/Outlet connection thread (outside): G 3/4"
Pressure adjustment: bypass
Min. filling volume: 20 L
Max. filling volume: 33 L
Water cooling connection thread (outside): 3/4"
Recommended cooling water temperature: 15 °C
Cooling water flow rate: 7.5 L/min
Pressure difference cooling water min.: 0.7 bar
Maximum pressure cooling water: 10 bar
Dimensions (WxDxH): 550 x 650 x 970 mm
Weight: 88 kg
Power supply: 230 V; 50 Hz
Power plug: Power cord with angled plug (CEE7/7)

Cooling capacity (50 Hz) — Tempering medium: Ethanol
20 °C — 3 kW
10 °C — 2.4 kW
0 °C — 1.68 kW
-10 °C — 0.95 kW
-20 °C — 0.45 kW

Characteristics / technical specifications

• Product line: Variocool (process/circulation thermostats)
• Model: VC 3000 (water-cooled variant: W)
• Pump: max. flow 37 L/min, max. discharge pressure 3.2 bar
• Filling volume: 20–33 L
• Controller: fully electronic PID, integrated programmer (max. 150 segments, 5 programmes)
• Interfaces: USB standard; optional modules (analogue, contact, RS232/485, Profibus, Ethernet-USB)
• Display: colour TFT (actual & set values + graphical temperature profile)
• Energy management: SmartCool digital cooling management
• Protection & alarms: electronic level indicator, low-level alarm, remote fault contact
• Dimensions: 550 x 650 x 970 mm; Weight: 88 kg
• Power: 230 V; 50 Hz
