Basic ultrasonic cleaning tanks
The tanks sizes can be manufactured to your requirement, volumes up to 650 litres.
Flexible tank sizes
Boosted performance
Good cleaning result
Easy service and maintenance
|
|
The Finnsonic m-Range offers you the right tools for precision cleaning.
- laboratories, optical and pharmaceutical industries, dentists, hospitals
- graphics and jewellery industry
- precision mechanics, hydraulics, vehicle repair
- electronics and food industry
Use the ultrasonic cleaner effectively!
Even the smallest ultrasonic tank has a good washing effect. The liquid volume in the tank should be at least three times the weight of the work pieces.
Detergent reduces surface tension in water thus intensifying ultrasonic cavitation. Detergent also dissolves and binds in liquid the dirt which has been loosened by ultrasonics. Only a few per cent of detergent is needed.
Heating the wash liquid intensifies the cleaning process significantly.
Ultrasonic cleaning is fast. Typical cleaning times vary from 30 s to 5 min.
|
|
Quantum Series Table-Top Parts Washers
Lifetime Warranty on the Heaters
Timer controlled Ultrasound
Stainless Steel Lid
1 Phase/ 120 VAC/ 15 Amp Standard (240 VAC available)
Unique Self Draining Baskets Available
Six (6) Models to Choose From
Omegasonics new line of Quantum Series Ultrasonic Table-Top units are ideally suited for washing small industrial parts. Applications include optical parts, small gears, machined parts, bearings, carburetors and carburetor components, surgical instruments as well as many other small precision parts cleaning needs.
|
|
Ultrasonic cleaning is faster, more consistent, and safer than any other method. Hand scrubbing, soaking, or steam don't even come close. The Bransonic® table top cleaners now include the same high power, rugged transducers found on industrial systems sold to the automotive, electronics, and metalworking industries. These Langevin-type metal/ceramic devices use engineered ceramics to assure both durability and superior power. Coupled with a new sweep frequency capability, you get the best possible cleaning every time, all the time.
Rugged enough for industry
Consistent enough to meet medical and laboratory standards
Safe enough for delicate electronic parts and precious jewelry
|
|
ULTRASONIC CLEANING BATHS
Pulsatron KC and MKC ultrasonic baths provide safe, fast and effective cleaning in a fraction of the time required by hand cleaning. Lightly soiled items such as jewellery may take only seconds, while medium soil is normally removed in two minutes or so.
Items benefiting include jewellery, clock and watch parts, optical lenses and frames, dental and surgical instruments, printed circuit boards, and manufactured parts in production or maintenance.
KC baths have a simple on/off switch for the ultrasonics.
Microprocessor controlled MKC baths, available in capacities of
6, 14 and 22 litres (approx), allow the user to pre-set exact cleaning times (up to 99.9 mins) and temperatures (from 20 to 80°C), thus ensuring the same high level of cleanliness every time.
|
|
|
|
|
|

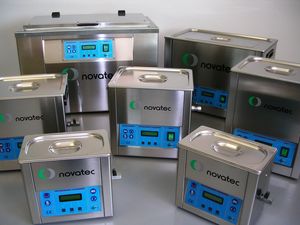

Novatec’s production includes a wide range of standard installations.
Cleaning and Drying Systems: ultrasonic cleaning and rinsing both standard and according to the customer’s specific requests. Modular surface treatment systems for immersion and/or spray treatment with single or cascading stages. Hot air dryers, infra-red and vacuum dryers, centrifugal dryers. Solvent dryers, ultrasonic degreasing machines, spray-cleaning machines. – Compact ultrasonic cleaning Tanks for laboratory or research applications.
Ultrasonics: piezoelectric and magnetostrictive ultrasonic generators, flanged or bulkhead mount submersible transducers. Available work frequencies from 18 to 100 kHz. Modular construction of the piezoelectric units allow to supply a generator also with different frequencies.
Automation: 2 or 3 axes handling systems with load capacity up to 1000 kg.
Air and Water treatment: water softeners, reverse osmosis, active carbon water filtration systems and manual or automatic water demineralising systems, ultra-filtration systems and evaporators under vacuum which allow to work environment-friendly. Extraction, filtration and air treatment systems (powders and vapours), clean rooms.
Painting: manual or automatic water veil or dry cabins, pre-drying modules and dryers.
NDT: Automatic FPI Dye-Pen, wash and developer systems.
|
|
|
|
|
|
INDUSTRIAL CLEANING TANKS
Pulsatron KS ultrasonic cleaning tanks are robustly constructed using AISI 316L polished stainless steel for durability, while Kerry Pulsatron ultrasonic generators ensure powerful parts cleaning and long equipment life. Typical uses include:
* Production cleaning - removal of oils, swarf, polishing compound, brazing flux, solder flux, carbonised deposits, moulding residues
* Refurbishment of computer, photocopier and engine components
* Maintenance of mould tools, extrusion dies, printing components, surgical instruments, electronics assembly system parts, and small machine components
KS tanks are microprocessor controlled for precision and repeatability. Sonics may be set in 6 second increments up to 99 minutes, and solution temperature may be set in the range 20 - 80°C in 1°C increments.
Standard KS systems operate at 38 kHz (±10%); however, optional
Neptune generator control allows switchable dual frequency
(35/70 kHz ±10%), variable power control and programmable operation of up to seven programs.
|
|
|
|
|
|
Blackstone~NEY Ultrasonics' standard line of heated tank ultrasonic cleaners find application in both industrial and laboratory settings - - wherever there is a need for a basic ultrasonic cleaning tank. All tanks are designed for portable, table top use or can be sunken into a countertop cutout for permanent, customized installation. Tanks are all stainless steel and come complete with a drain port and valve as well as an all stainless steel protective enclosure. Side mounted thermostatically controlled electric heaters maintain process temperatures up to 185 degrees F.
Each cleaning tank is supplied with a companion Neptune series ultrasonic generator. The generator is separate from the cleaning tank and connects to it through a co-axial cable permanently attached to the cleaning tank unit. There is a suitable plug at the generator end of the cable. Extra cable length can be purchased to allow mounting of the generator up to 100 feet from the tank location. All generators have an indicating on/off switch. Unless otherwise specified, all tanks are supplied for ultrasonic operation at 40 kHz.
...
|
|
|
|
|
|
Blackstone~NEY Ultrasonics' standard line of heated tank ultrasonic cleaners find application in both industrial and laboratory settings - - wherever there is a need for a basic ultrasonic cleaning tank. All tanks are designed for portable, table top use or can be sunken into a countertop cutout for permanent, customized installation. Tanks are all stainless steel and come complete with a drain port and valve as well as an all stainless steel protective enclosure. Side mounted thermostatically controlled electric heaters maintain process temperatures up to 185 degrees F.
Each cleaning tank is supplied with a companion Neptune series ultrasonic generator. The generator is separate from the cleaning tank and connects to it through a co-axial cable permanently attached to the cleaning tank unit. There is a suitable plug at the generator end of the cable. Extra cable length can be purchased to allow mounting of the generator up to 100 feet from the tank location. All generators have an indicating on/off switch. Unless otherwise specified, all tanks are supplied for ultrasonic operation at 40 kHz.
...
|
|
Ultrasonic cleaning SONOWAVE
with external generators are specifically designed for the high demands made during industrial use.
• Cleaning tank made of 2 mm stainless steel 1.4571
Base of the tank made of 3 mm stainless steel 1.4571
Casing made of 1.5 mm stainless steel 1.4301
• Ultrasonic generator with all features of the SONIC DIGITAL generator series
• Heating with digital temperature control up to 80° C and digital display
• Digital time setting and display
• Standard frequencies: 25, 30, 40 and 80 to 150 kHz
• Multi-frequency cleaning tank
|
|
Standard and bespoke sizes available.
Single tank ultrasonic aqueous cleaning system with the following features:
- All stainless steel
- BSP drain valve
- Heated tank
- Thermostatically controlled
- Bolt in transducer plate
- Separate generator (see below)
- Tank size (as required)
- Overall size (as required)
- Capacity (as required)
- Industrial standard - continually rated
- Insulated frame
- Basket & lid inclusive
- Table top mounted
- Operates from standard mains volatage
- CE certified
|
|
Bench Tops (with built in generators)
-Many sizes to fit your application needs
-All stainless steel construction
- Adjustable thermostat with power on light
-Bottom mounted "VIBRA-BAR®" ultrasonic transducers
-40 kHz "Simultaneous Multi-Frequency ultrasonics
-Ten years guarantee on transducers, one full year guarantee on tank, two years on the generator
-Made in the USA
-In stock- ships in one to ten days depending on options
|
|
|
|
|
|
Hexagon Filter Cleaning System
General:
This ultrasonic cleaning system is designed to clean stainless steel filter elements. The system utilizes water and detergent in the ultrasonic cleaning tank. Parts are manually transported through the wash process.
System Layout:
The system is designed with a stainless steel exterior frame with all stainless steel tanks and a stainless steel countertop. The ultrasonic generators are mounted within the frame cabinet. The countertop is fitted with a drip ring around each tank opening to reduce run-off effects. System is built to provide a degree of protection against light overspray and splashing water.
Dimensions:
Overall console dimensions: approximately 22" x 28" with a counter top height of 42 3/4".
Equipped as follows:
Ultrasonic Cleaning Tank (each tank):
- Tank dimensions: Octagonal shaped, 10" across x 38" deep (14 gallons)
- Working dimensions: 10" across x 28" liquid depth
- Fabricated from 12 gauge, 316L stainless steel
- 1000 Watts, 40kHz transducers
- 1000 Watts Average power, 2,000 Watts peak power
- 1000 Watt Ultrasonic generator with Radio Frequency Interference (RFI) filter
- 1" drain with 1/4 turn brass ball valve
- 1000 Watts of thermostatically controlled heat
- Sound dampening insulation: typically reduces noise by 5 to 10 decibels
|
|
The LIXEA cleaner BA is a tank of ultrasounds treatment simple and powerful whose dimensions and the ultrasonic power are adapted to the application.
thanks to the exceptional performances of the ultrasounds, the LIXEA cleaner series BA associated with a detergent makes it possible to wash, degrease, décolmater, to pickle, decontaminate metal or plastic parts.
Composed of an electrical power box and a stainless tank equipped with transducers with ultrasounds.
The equipment perhaps equipped with a module with heating with the bath and adjustment with the duration with treatment.
|
|
|
|
|
|
The LIXEA cleaner series IP or AND is an economic simple solution and for the cleaning of the large materials of industrial and professional kitchen, machine elements, electronic, material charts optics.
It is composed of an electrical power box and a paving stone immergeable with
ultrasounds (for series IT) and of a plastic Vat in which a paving stone immergeable is integrated (Series AND).
Thanks to the exceptional performances of the ultrasounds, the LIXEA cleaner series IP or AND, associated with a detergent, enables you to wash, degrease, décolmater, to pickle, decontaminate, more quickly and more effectively any material out of plastic or very dirty metal even:
Your plates and grids of cooking,
Your moulds of preparation,
Your kitchen utensils and drainer
Your dishes, pans and lids
Your vats gastronomes,...
The LIXEA cleaner series IP adapts simply, without tool nor modification with your existing vats, and this for all geometries and sizes of parts to be cleaned.
The LIXEA cleaner series AND can be connected on warm water arrival or function in autonomy with the kit heating and circulation of the bath.
|
|
