Vibrowest low profile circular sieve MSC model has central outlet and is designed for control sieving.
It segregates granular products, powder and liquid into various particle sizes ranging from 51 mm to 0,033 mm (33 microns).
It is assembled with two imbalanced-weight motors on opposite sides of the exterior lower deck. It allow the bottom outlet to be positioned directly below the top inlet, minimizes height requirement and enable material to fall vertically through the screens at high rates.
Standard model range in diameter size from 440 mm to 1.800 mm.
Screens are easy and fast to change and can be equipped with various cleaning system as: rubber balls, kleeners and the innovative ultrasonic cleaning system.
The separator can be built on customer request with carbon steel, stainless steel AISI 304, stainless steel AISI 316.
On request: ATEX certification, FDA IQ-OQ procedure, GMP.
All product contact areas can be polished in accordance with Sanitary Standard.
Compact design, high level of efficiency and reliability allow MSC model to be adapted easily into product lines.
Main sectors of application:
- Food industry
- Dairy farming
- Chemical
- Pharmaceutical
- Recycling and environmental
- Plastic materials
- Agriculture
- Confectionary industry
- Cement and sand
- Metal processing industry
- Liquid and powder paintings.
|
|
|
|
|
|
MR round vibratory separator segregates solids from liquids or dry material into various particle sizes ranging from 51 mm to 0,033 mm (400 mesh)
Easy to install, can separate particles in 1 to 5 sizes with up to 4 screen decks incorporated in one Vibrowest separator.
Standard model range in diameter size from 440 mm to 1.800 mm.
Screens are easy and fast to change and can be equipped with various cleaning system as: balls, kleeners, starbrush, CIP and the innovative ultrasonic cleaning system.
The separator can be built on customer request with carbon steel, stainless steel AISI 304, stainless steel AISI 316.
On request: ATEX certification, FDA IQ-OQ procedure, GMP.
The vibration develop in the horizontal and in the vertical plane and can be settled in both directions.
Vibration is accomplished by eccentric weights positioned on fly wheels assembled on the upper and lower ends of the motion generator shaft.
Upper fly wheel displacement creates the vibration in the horizontal plane, which moves the material from the center to the peripheral perimeter of the screen. Lower fly wheel displacement acts causing the vibration in the vertical as well as tangential plane.
Shifting the counterweights on the fly wheel is rapid and tool free. Allows to modify the vibration and find the best way to sieve a product. It follows an high screening efficiency both with liquid and solid products.
More than 45 years of experience in sieving machines, innovative and efficient design allowed Vibrowest to reach higher levels of efficiency and reliability.
MR model can be modified and adapted to the customer requirements.
|
|
|
|
|
|
Sweco’s MX Separator is the latest innovation in separation technology. With its totally enclosed weight guard, open base construction and angled support springs, this state-of-the-art round separator provides a safer and cleaner environment while improving product differentiation and maintaining the same outstanding quality expected from Sweco equipment.
Sweco vibro-energy round separators are versatile and can be customized to meet your needs. We offer a variety of round separators including the Sanitary, Avalanche and Low Profile. Sweco round separators can handle a broad range of materials - wet or dry, fine or coarse, heavy or light. Particles as fine as 400 mesh (38 µm) can be screened with up to 4 screen decks incorporated in one Sweco separator.
Sweco round separators offer 4 different separation processes: 1.Sizing for dry products such as sugar, spices and salt. 2. Scalping for dry materials such as powdered milk, chocolate powder and detergent. 3. Gravity Filtering/Product Recovery for solid/liquid mixtures such as fruit juice, pulp and paper and paint. 4. Wastewater Cleanup and Water Pollution Control for effluent systems like potato peelings and waste, poultry and laundry waste.
Sweco's patented force wheel and motion analyzer system assures more efficient processing than any other screening device. Additionally, Sweco round separators show greater capacity per square foot of screening area than other screening devices. Since the Sweco round separator transmits minimal vibration, no special foundation is required, making it easy to install. Finally, Sweco round separators are designed with few moving parts which assures long life and low maintenance.
|
|
|
|
|
|
Sweco's PharmASep is a fully contained Vibro-Energy Filter/Dryer suitable for aseptic processes in the pharmaceutical industry. With a design that eliminates gaps, crevices and hidden areas, the PharmASep proves valuable to those processes handling potent and/or toxic substances where containment is an important issue.
The PharmASep allows batch processing of up to 15kg of solids as well as continuous processing in pilot plants and full production environments. For both wet and dry processes, the sealed pressure vessel delivers high yield product recovery while containing potent pharmaceuticals for safer handling. Unique Vibro-DryTM Technology, developed by Sweco, allows vacuum drying to occur within the PharmASep while the product is gently tumbled on the screen surface, accelerating the drying process and reducing formation of agglomerates.
The PharmASep, with clean-in-place and steam-in-place capabilities, enables users to properly clean the machine without the need to disassemble and re-assemble, reducing downtime and ultimately increasing productivity. In the case of wet sieving, the PharmASep can dewater the product on the screen, apply vacuum, dry and discharge the dried product, eliminating the necessity for separate vacuum drying.
|
|
The revolutionary Finex Separator™ is designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation. It benefits from major advances in sieving technology providing large improvements in sieving accuracy, capacity, noise levels and upgradeability compared with traditional spring suspension separators.
To best fit into your production line and to make sure we can handle whatever throughput you require, the Finex Separator™ is available in four different sizes:
o 60" diameter
o 48" diameter
o 40" diameter
o 30" diameter
The Finex Separator™ can be fitted with up to four decks to increase separation accuracy (up to five fractions).
Other options:
The Eco Separator™ is our cost effective spring mounted grading unit suitable for most wet or dry applications. This machine combines a vibratory motor with adjustable out of balance weights to allow control of product movement on the mesh, to optimize separation efficiency.
|
|

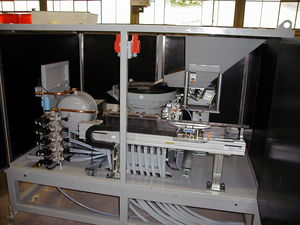

After your parts have been oriented, IDEATEC can provide
you with solutions to get the parts to the places where they
are needed :
- Linear vibratory conveyors, to transport them using vibrations.
- Conveyor belts, to accumulate them.
- Unitary or multi-position separators can separate them individually or in organized batches.
- Specially adapted ducts to convey them pneumatically.
- Manipulators to position them.
|
|
Feature
It's suitable for any powder, granule and liquid. Easy operation and powder won't fly out. Screen could be changed speedily.
Application
Foodstuff, Chemical, Medicine, Mineral, Rubber, Plastic, Metal and the Kinds of Environmental ProtectionKetc.
|
|
|
|
