Items Technical Specifications
Rated weight (kg) 1000
Rated capacity (m%u0437) 0.45
Max breakout force (KN) 36
Max.dump height (mm) 2420
Max.dump reach (mm) 900
Lifting time (s) ?4
Total cycle time (s) ?8
Travel speed(km/h) GRADE I I 5
GRADE II II 16
Max turning angle Each 35°(each direction)
Turning radius ( outside of rear wheel) 3600
Wheel base(mm) 1820
Tread (mm) 1400
Engine 490G
Rated power(KW) 33
Rated speed(rpm) 2400
Transmission system type Static hydraulic pressure-mechanical type
Steering system load sensing, prior steering
Overall dimensions (mm) 4960×1620×2360
Operating weight (kg) 3000
|
|
Items Technical Specifications
Rated capacity 3.0m„x
Rated weight 5000kg
Operating weight 16500kg
Automatic leveling ability Yes
Static tilting load 110KN
Max breakout force 175KN
Max drawing force 145KN
Max grade ability 30‹
Max.dump height 3100mm
Max.dump reach 1285mm
Min.ground clearance 410mm
Wheel base 3200mm
Tread 2250mm
Lifting time 6.5sifull load j
Total cycle time(lifting, dumping, lowering) 12sifull loadj
Overall dimensions (l~w~h)mm 8004~3070~3300
Engine Wei chai engine (Chinese famous brand)
Model WD615G.20
Type In line, water cooled, four stroke, dir.inject
Rated power 162KW
Rated speed 2200r/min
Min oil consumption
214g/kw.h
|
|
Rated capacity 1.7m„x
Rated weight 3500kg
Operating weight 9700kg
Automatic leveling ability Yes
Static tilting load 58.8KN
Max breakout force 120KN
Max drawing force 90KN
Max grade ability 30‹
Max.dump height 3050mm
Max.dump reach 1260mm
Min.ground clearance 410mm
Wheel base 2600mm
Tread 1870mm
Height with bucket at full raise 4870mm
Lifting time 5.5sifull load j
Total cycle time(lifting, dumping, lowering) 9.67sifull loadj
Overall dimensions (l~w~h)mm 6990~2420~3000
Engine Yuchai iChina famous enginej
Model YC6108G
Type In line, water cooled, four stroke, dir.inject
Rated power 92KW
Rated speed 2200r/min
|
|
Items Technical Specifications
Rated weight (kg) 2000
Operating weight(kg) 6000
Rated capacity£¨m§Ù£© 1.0
Max breakout force (KN) 55
Max drawing force (KN) 45
Max.dump height (mm) 2750
Max.dump reach (mm) 920
Min turning radius (mm) 4600
Lifting time (s) ¡Ü5
Total cycle time (s) £¼9
Engine YTO(Luoyang) Diesel engine
Model LR4108G95
Type in line, water cooled, four stroke, direct injection
Rated power£¨KW£© 60
Rated speed£¨rpm£© 2400
Min oil consumption (g/kw.h) 224
Torque-converter model YJ280
Type Three-element, single stage
Transmission box type Full power shift, countershaft type
Wheel base (mm) 2350
Tread (mm) 1500
Overall dimensions (l¡Áw¡Áh) (mm) 5880¡Á2060¡Á2700
|
|
Items Technical Specifications
Rated weight (kg) 1800kg
Rated capacity (m§Ù) 0.9 m§Ù
Max breakout force (KN) 46KN
Max drawing force (KN) 35KN
Max.dump height (mm) 2600mm
Max.dump reach (mm) 910mm
Min turning radius (mm) 4120mm
Lifting time (s) ¡Ü4.5s
Total cycle time (s) ¡Ü9s
Engine 4100G
Rated power
(KW) 50KW
Rated speed(rpm) 2400r/min
Tread (mm) 1460mm
Wheel base (mm) 2095mm
Transmission system type Static hydraulic-mechanical type
Steering system load sensing, prior steering
Overall dimensions(mm) 5520¡Á1950¡Á2600mm
Operating weight (kg) 4800kg
|
|
|
|
|
|
FEATURE:
LN920 wheel loader adopts LR4108G engine, hydraulic transmission, countershaft power shift transmission box, load sensing prior steering, air over oil service brake, and the middle articulated frame.
It is mainly used on stone yards, sand yards, coal yards, harbor and store houses for loose material¡¯s loading and short-distance transporting job.
SPECIFICATION:
Items Technical Specifications
Rated weight (kg) 2000
Operating weight(kg) 6000
Rated capacity£¨m§Ù£© 1.0
Max breakout force (KN) 55
Max drawing force (KN) 45
Max.dump height (mm) 2750
Max.dump reach (mm) 920
Min turning radius (mm) 4600
Lifting time (s) ¡Ü5
Total cycle time (s) £¼9
Engine YTO(Luoyang) Diesel engine
Model LR4108G95
Type in line, water cooled, four stroke, direct injection
Rated power£¨KW£© 60
Rated speed£¨rpm£© 2400
Min oil consumption (g/kw.h) 224
Torque-converter model YJ280
Type Three-element, single stage
Transmission box type Full power shift, countershaft type
Wheel base (mm) 2350
Tread (mm) 1500
Overall dimensions (l¡Áw¡Áh) (mm) 5880¡Á2060¡Á2700
Chinese Perkins(Lovol) is optional.
|
|
|
|
|
|
LN920 wheel loader adopts LR4108G engine, hydraulic transmission, countershaft power shift transmission box, load sensing prior steering, air over oil service brake, and the middle articulated frame.
It is mainly used on stone yards, sand yards, coal yards, harbor and store houses for loose material¡¯s loading and short-distance transporting job.
SPECIFICATION:
Items Technical Specifications
Rated weight (kg) 2000
Operating weight(kg) 6000
Rated capacity£¨m§Ù£© 1.0
Max breakout force (KN) 55
Max drawing force (KN) 45
Max.dump height (mm) 2750
Max.dump reach (mm) 920
Min turning radius (mm) 4600
Lifting time (s) ¡Ü5
Total cycle time (s) £¼9
Engine YTO(Luoyang) Diesel engine
Model LR4108G95
Type in line, water cooled, four stroke, direct injection
Rated power£¨KW£© 60
Rated speed£¨rpm£© 2400
Min oil consumption (g/kw.h) 224
Torque-converter model YJ280
Type Three-element, single stage
Transmission box type Full power shift, countershaft type
Wheel base (mm) 2350
Tread (mm) 1500
Overall dimensions (l¡Áw¡Áh) (mm) 5880¡Á2060¡Á2700
Chinese Perkins(Lovol) is optional.
|
|
Items Technical Specifications
Rated weight (kg) 1500
Rated capacity(m§Ù) 0.7
Max breakout forc (KN) 48
Max.dump height (mm) 2480
Max.dump reach (mm) 860
Lifting time (s) ¡Ü4.5
Total cycle time (s) ¡Ü9
Travel speed£¨km/h£© GRADE I I 8
GRADE II II 19
Max turning angle£¨¡ã£© Each 35¡ã£¨each direction£©
Min turning radius
(mm) 3600
Wheel base (mm) 1965
Tread (mm) 1400
Engine 4100G
Rated power (KW) 44
Rated speed (rpm) 2200
Transmission system type Static hydraulic-mechanical type
Steering system load sensing, prior steering
Overall dimensions(mm) 5100¡Á1800¡Á2600
Operating weight(kg) 4500
|
|
Items Technical Specifications
Rated weight (kg) 1200
Rated capacity (m§Ù) 0.5
Max breakout force (KN) 36
Max.dump height (mm) 2650
Max.dump reach (mm) 1000
Lifting time (s) ¡Ü4
Total cycle time (s) ¡Ü8
Travel speed£¨km/h£© GRADE I I 6
GRADE II II 18
Max turning angle£¨¡ã£© Each 35¡ã£¨each direction£©
Turning radius ( outside of rear wheel)£¨mm£© 3600
Wheel base (mm) 1820
Tread (mm) 1400
Engine 490G
Rated power(KW) 33
Rated speed(rpm) 2400
Transmission system type Static hydraulic -mechanical type
Steering system load sensing, prior steering
Overall dimensions (mm) 5300¡Á1680¡Á2400
Operating weight(kg) 3000
|
|
Item Performance
Max reach, open 1500mm
Min diameter, closed 450mm
Gripping tool width 1620mm
Max.dump height 2900mm
Max.dump reach 1360mm
Rated load capacity(kg) 1500kg
|
|
The Volvo Compact wheel loader family consists of 6 models; ranging from 4550 kg to 8330 kg in Operating weight, and 0.65 m3 to 2.5 m3 in Bucket capacity.
Volvo compact wheel loaders combine hi-tech and proven technical components in a way that fully complies with the requirements of modern construction practice, and which satisfies the strictest quality demands.
What’s more: These machines are produced and being operated with an utmost respect for our environment. The engines have low pollution figures and low noise emissions and as many machine parts as possible are recyclable.
|
|

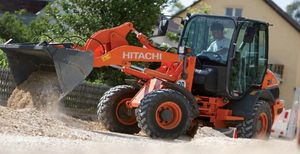

Hitachi's wheel loaders offer you an incredible array of options. Each is designed for easy operation. Minimal force is required to operate levers and pedals, enabling improved controllability. What's more, better gradability on hills, improved digging capability, and maximum visibility (through tapered engine covers) enable the most comfortable operation possible. Some of Hitachi's wheel loaders use hydrostatic transmission (HST) for ease-of-use and controllability. In addition to giving you plenty of speed, this hydraulic pump motor enables maximum mobility on construction sites.
Hitachi is committed to maintaining top efficiency while considering the equipment's surroundings. That's why our wheel loaders come equipped with reduced noise and low exhaust emissions. For being so environmentally-friendly, these machines have incredibly high productivity and low maintenance costs. They are built to be tough and durable so that you get the most for your money.
|
|
THE SKY IS THE LIMIT, WITH HYUNDAI
How high can you go? The Hyundai Wheelloader is a rugged,
productive, lean-and-mean lifting machine.
Designed for the European market, it delivers optimum
productivity, reliability and comfort in a robust, user-friendly
package. You will be amazed because of its short cycle-time;
it will push the envelope on your productivity!
Its large front window and big cabin is especially crafted to
ensure high operators visibility. Hyundai’s use of well-known and
trusted components, ensures that you are in the hands of an
established market leader.
With the Hyundai Wheelloader, there truly is no limit to what
you can do.
|
|
Volvo Wheel Loader family consists of 11 models; ranging from 73.9 kW (101 hp) to 369 kW (502 hp) in Engine output, and 1.2 m3 to 13.5 m3 in Bucket capacity
Whether you move rock, earth, timber, sand or snow, a wide range of Volvo Wheel Loaders and attachment options are available to help you conquer the elements.
|
|
- Automatic transmission with Electronically Controlled Modulation Valve (ECMV).
- Electronic controlled transmission lever.
- Variable transmission cut-off system.
- Telescopic/tilt steering column.
|
|
Hitachi's wheel loaders give you safe, easy operation so that even beginners can work like veteran operators. These user and environmentally friendly machines give you the productivity you need to get the job done.
|
|
W50TC/W60TC/ W70TC/W80TC/
Net flywheel power 40 kW - 54 hp,
44 kW - 59 hp,
45 kW - 60 hp,
56 kW - 75 hp
Maximum operating weight 4.800 kg, 5.050 kg, 5.550 kg, 5.900 kg
Bucket capacity 0.65 - 0.80 m³,
0.80 - 0.90 m³,
0.90 - 1.00 m³,
1.00 - 1.20 m³
|
|
|
|
|
|
V3-5 /V4-5
YANMAR's Compact Wheel Loaders provide class leading lift capacities with uncommonly smooth hydraulic performance.
The user-friendly design for easy operation, versatility and durability work for the customers satisfaction.
We have 2 models, the V3-5 (operating weight 6,750lbs, canopy) and the V4-5 (operating weight 7,651lbs, canopy).
1. Automatic Mode - The machine will accelerate smoothly and change gear speed automatically.
2. Fixed Speed Mode - Machine speed is fixed at low speed mode irrespective of accelerator operation. Powerful, smooth job operation-a convenient mode for jobs in restricted areas.
3. Hydraulic Shuttle Shift - Convenient one lever F-R operation.
4. Auto-Leveler - A single lever operation places the bucket level on the ground, automatically. The bucket moves swiftly back to the scooping position after dumping. It makes everyone a skilled operator.
5. Rear Axle Oscillation - The driving force of the machine it transmitted securely in uneven terrain through the use of rear axle oscillation. It reduces operator fatigue and helps keep operation level.
|
|
HARDWORKING HYUNDAI WHEEL LOADERS
You can meet the new generation wheel loader in Hyundai.
The HL 7 series will give you the satisfaction in higher power, lower fuel consumption, more comfort and lower emission compared with before.
Come experience what Hyundai has created for you by bringing together great power and up-to-the-minute technology.
|
|
|
John Deere H-Series and J-Series wheel loaders deliver maneuverability and lift capacity, all in one package. The compact H-Series machines feature stereo steering, which provides machine articulation and rear-axle steering, resulting in the tightest turn radius in the class but with a reduced angle of articulation for safer transport; a state-of-the-art multifunction monitor with advanced diagnostics; a durable solid-state electrical distribution center; and a convenient sealed switch module. The larger J-Series’ innovative Quad Cool™ system keeps everything running cool for top fuel and power efficiency. Horsepower ranges from 65 to 275 (48 kW–205 kW), with heaped bucket capacities from 1.2 cu.-yd. to 6.28 cu.-yd. (0.9 m3–4.8 m3).
|
|
SWL60F Main Specification
Bucket Capacity 3.5 m3
Rated Power 174 kw
Load Capacity 6000 kg
Operating Weight 18600 kg
This wheel loader SWL60F is equipped with reliable cat Cat C6121 engine, famous original GRAZIANO wet type axle with multi-disc limited- slip differentials deliver, maximum traction in changing traction condition. And the combined seal cylinder obtains high seal performance and more reliability. Wheel loader is a kind of desired construction machinery (construction equipment). They are commonly used to move a stockpiled material (sand, rocks, paved materials) from ground level and deposit it into an awaiting dump truck or applied to dig open trench excavation
|
|
|
|
|
|
Gallmac WMW100L-LT
9,5 tons machine (loader configuration), driven by Perkins engine 61,5 kW (85 HP)
Max width: 2300mm
Turret swinging radius: 1450mm
Hydrostatic transmission in close circuit, with "automotive" adjustment
Max digging depth: 4000mm
Max lifting height (hook): 6200mm
Lifting capacity at min. radius: 3200kg
MAIN FEATURES:
* 360° steepless rotation turret - truck loading without machine moving
* Quick coupling electrically controlled from the cab - quick change of tools
* Engine located on the frame - lower centre of gravity - better stability
* Front dozer blade, central outriggers - higher stability especially when used as loader
* Increased length of the articulated arm - increased height and depth of loading/unloading
* 4 steering and driving wheels - max. mobility in narrow spaces; crab steering; minimum steering radius within the category
* Windows all over the cab - complete visibility during the loading
* Rear axle swinging 10° with self locking differential
* Max. speed up to 25 Km/h
|
|
968H
Wheel loader
Cummins 179kW supercharged engine enjoys large torque reserve, strong power and low oil consumption as well as is provided with the flame preheating function and electric shutdown function. The double air filters are equipped to largely avoid the engine wearing out untimely. CAT 175kW engine is optional.
|
|
|
Caterpillar builds a complete line of wheel loaders, including the world's largest 994F. Integrated Toolcarriers operate a wide variety of work tools. Your Cat dealer can help you choose the best wheel loader for your application.
|
|
Wheel Loader
From the beginning, Doosan has had great concern for machine operators. People need to work in a well-designed and comfortable environment. The work area is spacious, with several places for storage. The checking and monitoring devices are comprehensive. There is an open view of the work area. For night work, operators are provided with powerful front and rear lighting.
|
|
Hitachi's wheel loaders give you safe, easy operation so that even beginners can work like veteran operators. These user and environmentally friendly machines give you the productivity you need to get the job done.
|
|
Masterpiece of wheel loader demanded by the age.
Number one product, hyundai Loader moving into a new epoch of wheel loaders.
Our products, which have the high performance power mechanism felt from the tough appearance and the superior work performance with durability, maintainability and safety, carry out any work at rough terrai as well as large constructions.
|
|
W170B/W170BTC
Net flywheel power W170B-W170BTC 145 kW - 194 hp
Operating weight W170B 14.840 kg - W170BTC 14.670 kg
Bucket capacity W170B 2,4 - 2,8 m³ - W170BTC 2,4 - 2,5 m³
|
|
|
The Ahlmann AF60e is an extremely agile front loader with four-wheel steering. It only needs a minimal turning radius of 2.77m
|
|
Productivity
CUMMINS QSB6.7 electronic engine,the emission meets EPA TIER standards
High drive speeds with 4 forward and revrese gears
Responsive and accurate hand control with a single joystick with integrated KD function
Double-brake pedals simplify simultaneous driving and mechanical operations
Economical
Torque converter is matched to the engine to ensure maximum power transfer
Hydraulics employ a dual-pump system and converging and self-unloading function to reduce energy loss
Improved air per-filter system improves overall engine efficiency in dusty conditions
Reliability
Vehicle has a strong flexible frame that will withstand load and torsion
stresses in the toughest working conditions
Key components from world class suppliers
Warranty and service programs available
|
|
... see all the products in the category
Loaders
|
|
|
