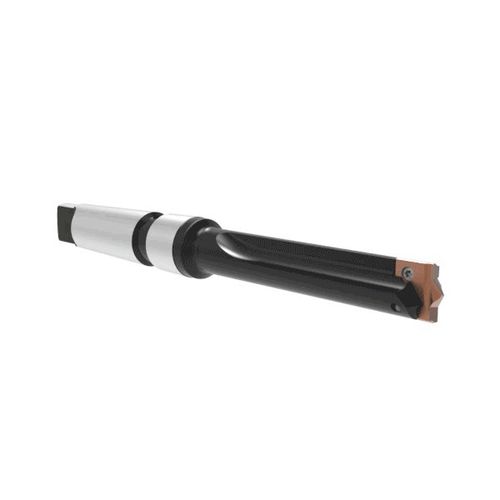

T-A® Structural Steel Drilling System is designed for use on structural steel materials. This system delivers outstanding performance and durability.
Advantages
TiAlN and AM200® insert coatings increase tool life in MQL applications
Multiple geometries available
Holders are compatible with GEN2 T-A® inserts for increased performance
Features
150º Structural Steel Geometry for reduced exit burr
NotchPoint™ Geometry for improved hole straightness
Thin Wall Geometry for materials under 7/16" (11 mm) thick
Morse Taper shanks with through shank coolant capability
Various tool lengths to accommodate different reaches
Product Specifications
Product TypeReplaceable Drill Insert
Diameter Range0.511" - 1.882" (12.98 mm - 47.80 mm)CoatingAM200®, TiAlN
Insert MaterialSuper Cobalt, C1 (K35) carbideHolderT-A Holder
Flute OptionsStraight, HelicalShank Options3MT, 4MT, Imperial Morse Taper
Drill DepthShort, Standard, Extended, LongCoolantThrough Coolant
