shell and plate heat exchanger / liquid/liquid / gas/liquid / gas/gas

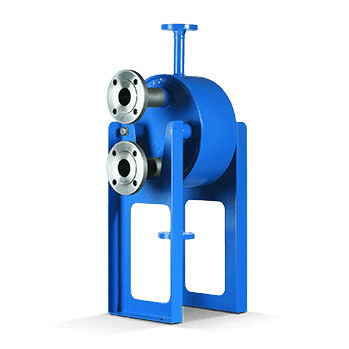

Schmidt® SIGMASHELL API Schmidt-Bretten, API Heat Transfer group



  • Type:

    shell and plate

  • Fluid:

    liquid/liquid, gas/liquid, gas/gas

  • Material:

    stainless steel, titanium, nickel

  • Other characteristics:

    compact, high-performance, corrosion-resistant, seawater resistant, condensation, low-pressure, custom, water-cooled, high-temperature, oil cooler, sanitary, gas cooler, water cooler, high-pressure, stainless steel, for corrosive fluids

  • Applications:

    for the food industry, industrial, for swimming pools, desalination, for the petrochemical industry, for the chemical industry, for hydraulic systems, for marine applications, for the pharmaceutical industry, for wastewater, for heat pumps, for refrigeration, for the plastics industry, for the food and beverage industry, for viscous products, vaporization, for the paper industry, exhaust gas heat recovery, for water treatment

  • Operating pressure:

    Max.: 150 bar (2,175.57 psi)

    Min.: 0 bar (0 psi)

  • Temperature:

    Max.: 550 °C (1,022 °F)

    Min.: -200 °C (-328 °F)


Sealless and with a heat transfer surface area up to 700 m2, our SIGMASHELL laser-welded plate and shell heat exchangers are ideal for thermal treatment of liquid, vapor, and gas. SIGMASHELL is applicable in all industrial sectors, including chemical and petrochemicals, pharmaceuticals, renewable energies, bio energy, power generation, pulp and paper, steel mills, and coking plants.
