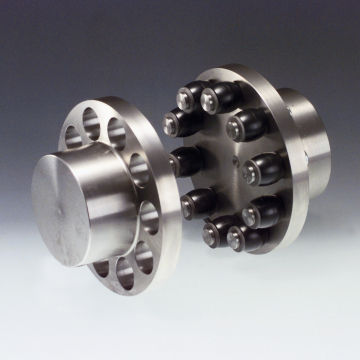

Rigid coupling 09.1013.8 seriestransmissiontorqueflange
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Product applications
- transmission
- Other characteristics
- torque
- Installation system
- flange
- Torque
Max.: 3,900 Nm
(2,876.4924 ft.lb)Min.: 19 Nm
(14.0137 ft.lb)- Rotational speed
Max.: 5,000 rpm
(31,415.93 rad.min-1)Min.: 2,450 rpm
(15,393.8 rad.min-1)
Description
Material flange:cast iron (GG-25)
Material buffer:NBR
Working temperature:from -30 to +80 °C
Product description:Torque is transmitted via elastic coupling sets, which are in evenly placed pockets around the periphery of coupling part 1 type B. The corresponding cams of coupling part 4 grip into the intermediate spaces. The two-component version B requires for separation an axial shift by the length of the cam.
Version:flexible couplings
On request:Coupling part 1 and 4 with bore and groove; material: cast iron with spheroidal graphite (GGG-40); package with high or low elasticity
Note:parts 1, 4
Characteristics:Yields radially, angularly, axially and for spins in both directions of rotation, also in reverse, puncture-proof, dampens oscillations, progressive spring characteristics, small in size, low angular momentum, maintenance free
