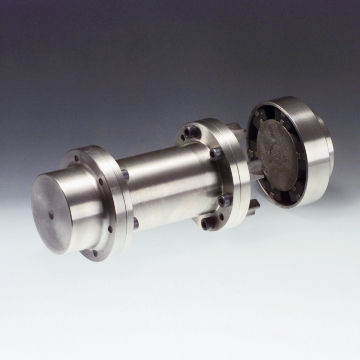

Rigid coupling 09.1013.9 series

pumpmotortorque

Material flange:cast iron (GG-25) Material buffer:NBR Working temperature:from -30 to +80 °C Product description:Torque is transmitted via elastic coupling sets, which are in evenly placed pockets around the periphery of coupling part 1 type H. The corresponding cams of coupling part 7 grip into the intermediate spaces. On the four component version H the intermediate sleeve, part 6, enables removing the thrust bearing with running wheel without removing the motor, e.g.in rotary pump drives Attention:The coupling parts contain no bores for the shafts Version:flexible couplings On request:Coupling part 1 and 5 with bore and groove; material: cast iron with spheroidal graphite (GGG-40); package with high or low elasticity Note:parts 1, 5, 6, 7 Characteristics:Yields radially, angularly, axially and for spins in both directions of rotation, also in reverse, puncture-proof, dampens oscillations, progressive spring characteristics, small in size, low angular momentum, maintenance free
