Miniature positioning stage Type 309A

linearmanualsingle-axis

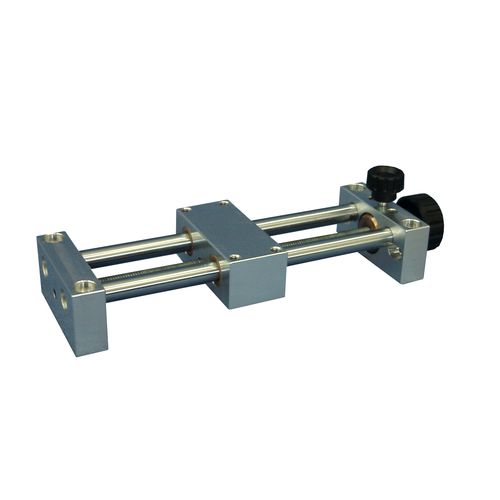

Small manual positioning table Driving by metric screw M6x1 Guided by 2 rods in steel Options : Handwheel or grip knob Positioning indicator Position clamping Assembly in XY table or XYZ system Precision and compactness of this small manual table It is the smallest manual table in our range (width 54 mm / height 27,5 mm). Screw step is 1 mm per round and axial precision of these tables is <0.05 mm after locking in position (<0,10 mm before locking in position). Locking in position is done on the transmission screw, either at the top of the bearing (position B1) or at the end of the table (position B2). Grip knob, position indicator and maxi stroke The shaft outlet is threaded to screw in the grip knob with or without a position indicator (or the handwheel, but it can’t be used with an indicator). The maxi stroke is 100 mm, and any intermediate stroke can be produced. Compact lifting table, miniature cross table and base plate A version “Z axis” allows to fix the table only by its end plate. It can be fixed directly on the carriage of another table for a YZ mounting. The base plate allows mounting in XY cross tables (see picture below). Other products in the range of manual tables If the step of 1 mm is too small for the application (travel time too long), the table 309B0 has a step of 2 mm and is not much larger, the rigidity is also greater because the rods go from Ø8 to Ø10.
