XYZ positioning table Type 309B
manual2-axis1-axis

XYZ positioning table
XYZ positioning table
XYZ positioning table
XYZ positioning table
XYZ positioning table
XYZ positioning table
XYZ positioning table
XYZ positioning table
Add to favorites
Compare this product

Characteristics

Orientation
XYZ
Type
manual
Number of axes
2-axis, 1-axis, 3-axis
Other characteristics
aluminum, compact, with position indicator, trapezoidal screw
Stroke

Max.: 200 mm (7.874 in)

Min.: 5 mm (0.197 in)

Description

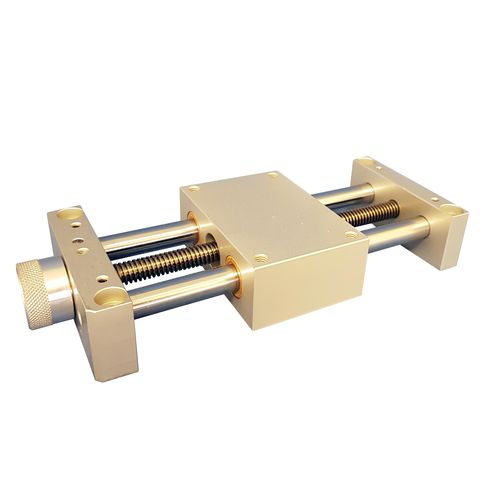

This new range of manual leadscrew tables is 20 to 35% more economical than the 309D range. 3 sizes with a new size 0: This range is available in 3 sizes with rods Ø10, 12 and 16 for 4 standard strokes: 50, 100, 150 and 200 mm. A new size 0 is inserted between the mini-table 309A0 and size 1 to obtain a more homogeneous range, especially in combination with XYZ tables because this range is also available as a lifting table. The quality of the guidance is preserved: The guide remains the same with 4 bronze bushings on 2 chrome steel rods. The play of the guide is then only a few hundredths. Axial precision: The ball bearing cage of the 309D range has been replaced by a bronze bearing which generates an axial play < 0.05 mm. In combination with the axial play of the trapezoidal screw nut, the axial accuracy in practice is between 0.05 and 0.15 mm. Interchangeability with the 309D and 309E range: The mounting holes of the plates and the carriage are the same as for the short tables Type 309D and the lifting tables Type 309E. Position display by ruler: The position is displayed either by means of a digital indicator or by a more economical version with a ruler on the base plate. The position can be locked in 2 places: The locking position is done manually by a clamping key. On this range, the clamping key can be placed above the control plate or at the end of the end plate depending on the available access. Anti-corroding version: On request, an anti-corrosion version is available with stainless steel and anodised aluminium parts.
