Spray nozzle NC seriesfor liquidsfull-conePTFE
Add to favorites
Compare this product
Characteristics
- Function
- spray
- Fluid
- for liquids
- Stream
- full-cone
- Material
- PTFE, polypropylene, PVC
- Applications
- for the food industry, industrial, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 60°, 90°, 120°, 70°, 80°, 110°, 100°, 75°
- Other characteristics
- NPT, male, female, BSP, high-flow
- Orifice diameter
Max.: 0.84 mm
(0.03 in)Min.: 0.25 mm
(0.01 in)- Flow
Max.: 9,320 us gal/min
(35,280.04 l/min)Min.: 2.01 us gal/min
(7.61 l/min)- Pressure
Max.: 100 psi
Min.: 3 psi
Description
Axial Spray Nozzle Made From Chemical-Resistant Plastics
DESIGN FEATURES
High flow rates with coarse atomization
Reliable, uniform coverage
Manufactured in chemical-resistant plastics
Lightweight and rugged
Custom flowrates available

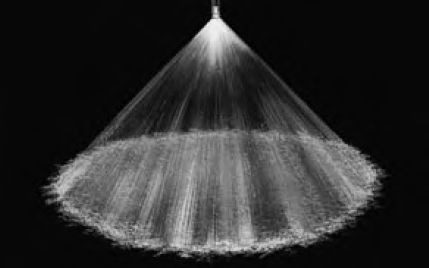

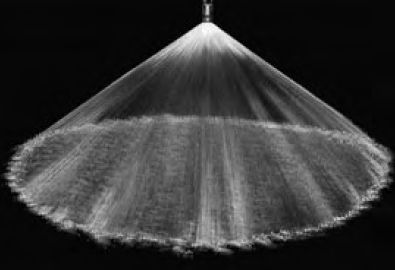

HOW SPRAY PATTERN IS ACHIEVED
Atomization is achieved by the water being spun inside the nozzle and then exiting an orifice
High flow rates produce coarse atomization
VIDEO
