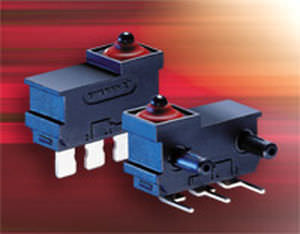

Slide switch DJ seriessingle-polewaterproofelectromechanical
Add to favorites
Compare this product
Characteristics
- Type
- slide
- Number of poles
- single-pole
- Protection level
- waterproof
- Other characteristics
- electromechanical, snap-action, subminiature
- Primary current
Max.: 2 A
- Voltage
Max.: 12 V
Description
IP6K7 sealed sub-subminiature switch
Switching current from 5 mA up to 2 A at 12 VDC
Suitable for actuation at angles of up to 40°
(dependant on slide partner material etc)
High contact stability with AuAg crosspoint contacts
Easy installation due to connector pins and fastening nut
Operating temperature up to 85 °C
Mechanical life min. 500,000 actuations
