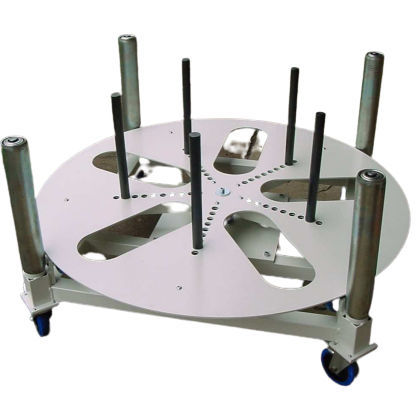

Coil unwinder D323

for hosesmanualfor hydraulic applications

Manual uncoiler for hydraulic and industrial hoses Technical specifications • Tray diameter : 1500mm • 4 removable spindles to prevent crowns uncoiling • Enables the loading of hoses using a forklift truck or a hoist • Oblong cut-outs to allow crowns to be attached to the tray • Manually adjustable hub to control tray inertia • Maximum crown height: 350mm (can be modified on request) • Equipped with 4 locking multidirectional wheels • Working height: 435mm • Dimensions H x W x L: 785 x 1550 x 1550 mm • Weight: 170 Kg
