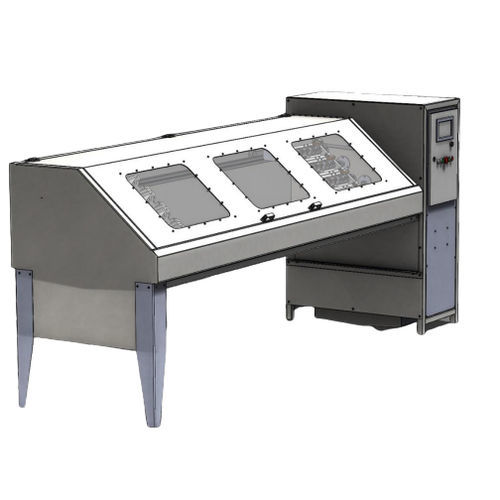

Multi-parameter test stand BE462

filtrationautomatichose

Automatic testing of hydraulic hose assemblies • Maximum pressure: 1400 ou 2000 bars • Stainless steel testing unit: L x W x H: 3000 x 1000 x 500mm • Test fluid: water-in-oil emulsion, hydraulic oils • Energy: compressed air – 6 Bars • Power supply: 400 V tri – 50 Hz • Tank 100 l with pump for closed circuit • Connections : female G ½ • Easy access by window equipped door to fit hose assemblies • 3 safety windows for easy surveillance – water- proof lighting • Metal structure • Completely closed unit, locked during the test • Automatic test cycle by digital control panel allowing: • Quick filling to allow air bleed (filtration 25 microns) • Pressure rise • Pressure hold during a preset time • After pressure fall, the hose assembly is immediately blow-dried (filtered air) • Dimensions: H x W x L : 1500 x 1200 x 3500mm • Weight: 600kg
