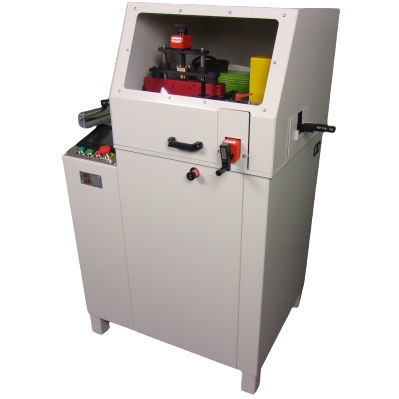

Rotary blade cutting machine TA1

for rubberfor hosesmanually-controlled

Exclusively designed to cut wire braid hoses up to 1’’- 1/2’’ • The hose is fed into the machine by a caterpillar system and is controlled by an electric motor • The feeding speed is adjustable from 0 to 40 m/mn • Track width manually adjustable by handwheel with digital indicator • Digital control pad 1 spindle which has different programs • Capacity : 1000 programs • One program includes: the part length, the number of parts, the elongation adjuster, the length 2 for the optimization of scrap, the length 3 for the optimization of scrap • Bevelled cutting blade: 300 x 3 x 30mm • Electric motor: 4 kW with break • Rotation speed: 3000 rpm • During the cutting operation, 2 hinged jaws hold and guide the hose • Adjustment is manually done by the handwheel Two pneumatic cylinders to perform pipe bending and cutting head hose • Power supply: 400V TRI – 50Hz • Pressure air: 6 bars • Connection nozzle with aspiration system • OPTION: his cutting machine can be equipped with an evacuation system (length from 3 to 5 m)
