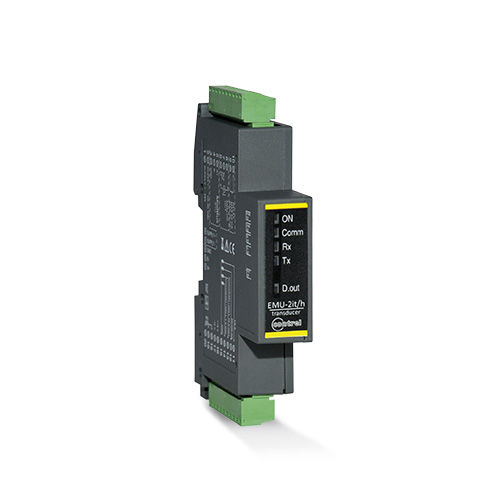

Monitoring analyzer EMU-2it

for electrical networksDC electrical networkAC energy network

Introduction The EMU-2it has been designed in modular housing, 1U (17,5mm wide) for DIN rail. It supports all current sensors (CT secondary at 1A or 5A, 0…333mV, , ±1 o 10Vpk, 100mA CA/CC, Rogowski coils, HALL sensors). The built-in digital output allows connecting the status of an output to the status of a limit threshold, an alarm, etc. The EMU-2it is provided with analog output 0...20mA or 0…10V and temperature input. Built-in with a RS-485 interface with Modbus protocol to consent the integration in supervision systems. Description • Modular DIN-rail housing, 1 module DIN • Universal current measurement inputs • Harmonic analysis of voltage and current up to 63.rd order • 1 programmable digital output • 1 analog output 0...20mA or 0…10V • True RMS measurements • Continous sampling • LED of communication status • 1 temperature input PT100 or NTC • Accuracy 0,5% • Built-in RS485 interface (Modbus RTU)
