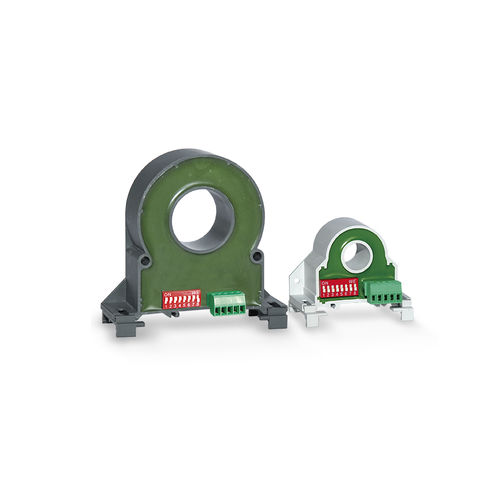

Current transformer TTC series

dryDIN rail mountthrough-hole

The TTC-V and TTC-I are AC and DC current transformers, galvanically isolated from the measurement circuit. The devices are in function and appearance quite similar to a standard active CT, however capable of measuring the DC and AC component TRMS. The TTC-V transformer is equipped with an RS485 port and an analog ouput O...IOV, while the TIC-I only has an analog output 4...20mA. Fitteted for mounting on DIN bar. The main measures are: • Current • Maximum value (MAX), minimum value (MIN) function OPERATIONAL CHARACTERISTICS • Diagnostics LED indicates correct communication • Current measurement range: • True RMS measurements for current values • Accuracy: - current: ±0,5% f.s • RS485 port (TTC-v only) • Communication protocol Modbus-RTU • output IOV (TTC-v only) • Analog output 4...20mA (TIC-I only) • Programming and remote control via software • Modular housing
