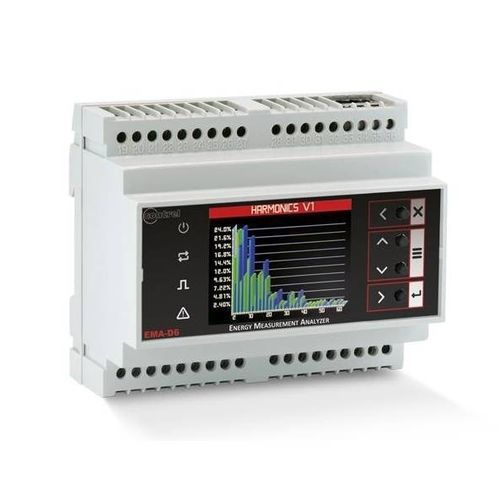

3-phase electrical networks analyzer EMA-D6

signalpower qualityharmonic

Compact, versatile network analyzer for energy cost and basic network and asset management applications. Thanks to its large measured voltage range, the EMA-D6 with multi-range power supply can be connected in any low and medium voltage system up to a rated system voltage of 690 VAC. The RS-485 or Ethernet interface can be used for communication. In addition, the EMA-D6 has a multifunctional digital outputs using an alarm. The analyzer can accept up to 4 digital inputs. Range: EMA Product name: EMA-D6 Product type: Network analyzer Device application - Energy and power monitoring - Multi-tariff - Sub-billing Power quality analysis - Up to the 63rd harmonic - Phasor diagram - Swell overvoltages - DIPs - Interruptions Type of measurement - - True RMS - Active and reactive power - Apparent power - Current - Voltage - Energy - Power factor - Frequency - Total current harmonic distortion THD (I) - Total voltage harmonic distortion THD (V)
