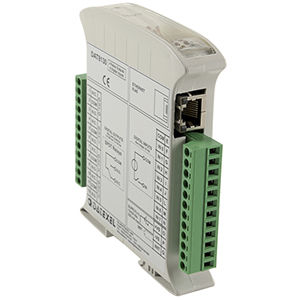

Web server DAT8017-V

DIN railEthernet

The DAT8017-V module is a Modbus TCP server unit that can convert up to 8 analog signals applied to the input in engineering units in digital format. The inputs can be connected with voltage output sensors. The input channels are electrically isolated in pairs. The device guarantees high accuracy and a stable measure versus time and temperature. In order to ensure the safety plant, the device is provided with a Watch-Dog Timer system. The Ethernet interface allows reading and writing in real time the values of the internal registers of the device. The LEDs of signalling of Ethernet activity and power supply allow a direct monitoring of the system functionality. The built-in Web Server of DAT8017-V allows the remote visualization, acquisition of the analog inputs and the access to the main Ethernet programming parameters.The device is also configurable by the software Dev9K, a free IDE developed by DATEXEL. The connection is made by removable screw-terminals (inputs and power supply) and RJ45 plug (Ethernet).
