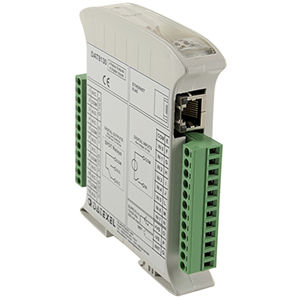

Web server DAT8018

DIN railEthernet

The DAT8018 module is a Modbus TCP server unit that can convert up to 8 analog signals applied to the input in engineering units in digital format. The inputs can be connected to sensors with mV output or thermocouple. The input channels are electrically isolated in pairs. The device guarantees high accuracy and a stable measure versus time and temperature. In order to ensure the safety plant, the device is provided with a Watch-Dog Timer system. The Ethernet interface allows reading and writing in real time the values of the internal registers of the device. The LEDs of signalling of Ethernet activity and power supply allow a direct monitoring of the system functionality. The built-in Web Server of DAT8018 allows the remote visualization, acquisition of the analog inputs and the access to the main Ethernet programming parameters.The device is also configurable by the software Dev9K, a free IDE developed by DATEXEL. The connection is made by removable screw-terminals (inputs and power supply) and RJ45 plug (Ethernet).
