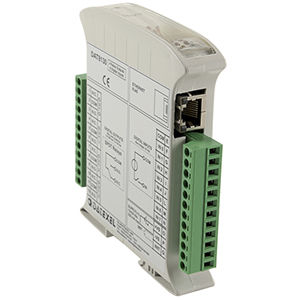

Web server DAT8130

DIN railEthernet

The device DAT8130 is a Modbus TCP server unit with 8 digital input channels and 4 relay outputs type SPDT. For the digital inputs are available up to four 32 bit counters with measure of frequency up to 300 Hz. The Ethernet interface allows to read and write in real time the value of device's internal registers. The built-in Web Server of DAT8130 allows the remote visualization and acquisition of the digital inputs state, to drive the relay outputs and access to and configure the main Ethernet parameters via web browser. The device is also configurable by the software Dev9K, a free IDE developed by DATEXEL
