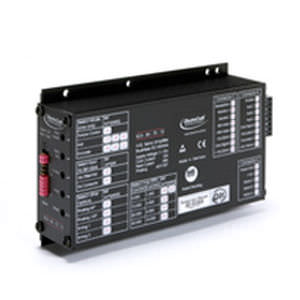

DC servo-amplifier / brushless / 1-axis / engine
SCA-B4-70 Electrocraft

Characteristics

  • AC/DC:

    DC

  • Type:

    brushless

  • Number of axes:

    1-axis

  • Product applications:

    engine

  • Current:

    30 A, 10 A

  • Output power:

    2100 W (2.82 hp)

Description

The CompletePower SCA-B4-70 series is composed of Servo-amplifiers developed by Electrocraft. They have four quadrants and a nominal current which can either be 10 A or 30 A. The amplifiers are for Brush-Commutated PMDC Motors and it can work at most 2,100 W. They are enclosed in a housing made of rugged aluminum materials. This casing can be panel mounted for easy integration. The drive of these amplifiers are configurable with different torque and speed control modes with a mode operation by the DIP switches. In addition, this drive is protected against over current and over temperature. Plus, it is supported with a Mosfet technology which is incorporated in the motor for maximum efficiency.
