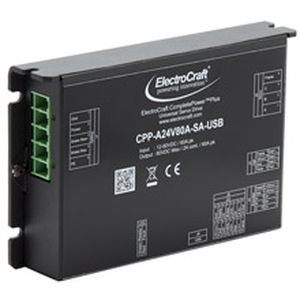

DC servo-drive / brushless / digital / motion control
CPP-A24V80

{{requestButtons}}

Characteristics

  • AC/DC:

    DC

  • Type:

    brushless

  • Output signal:

    digital

  • Product applications:

    motion control

  • Other characteristics:

    universal

  • Current:

    24 A

  • Output power:

    4,800 W (6.52618 hp)

Description

Introducing ElectroCraft's Universal Drive, the newest addition to the ElectroCraft CompletePower™ Plus family of DC motor drives.
The Universal Drive takes performance, efficiency and flexibility to the next level, utilizing state-of-the-art digital drive technology combined with an intuitive and highly configurable user interface. Perfect for a wide range of industrial, commercial market, and consumer product applications. The CPP-A24V80A-SA-USB is one of three standard capacities in the model lineup. Customized versions are also offered to meet large volume OEM requirements.
Driven by design to be one of the most space efficient, low voltage, digital servo drives available.
Utilizing the latest in digital drive architecture to provide software selectable control mode operation.
Compatible with Brushless motors from 12 to 80 VDC and up to 24A continuous, 60A peak current.
Sine-wave commutation using either hall sensor or encoder feedback provides smooth torque for demanding motion control requirements.
Advanced Field Oriented Control provides high dynamic response resulting in a robust motor controller with low torque ripple that produces smoother, more efficient motion!
Easy setup and configuration via USB interface with ElectroCraft CompleteArchitect™ - Windows-based software.
