Adhesion tester Model 525

for coatingindustrialportable

Description
The Adhesion Tester model 525 performs pull-off adhesion tests in accordance with ASTM D 4541. It evaluates coatings that can be bonded to a test cylinder using conventional adhesives. The device is entirely mechanical and requires no electrical supply, making it particularly suited for mobile, on-site inspections and harsh field conditions.

Principle of Test
A test cylinder (dolly) is bonded to the coating with a suitable adhesive. Under defined conditions the dolly is pulled off and the tensile stress at failure is recorded. A visual inspection of the detached surface complements the measurement to assess adhesive performance. Results may not be directly comparable with methods that apply shear forces (e.g. cross-cut tests).

Design and Function

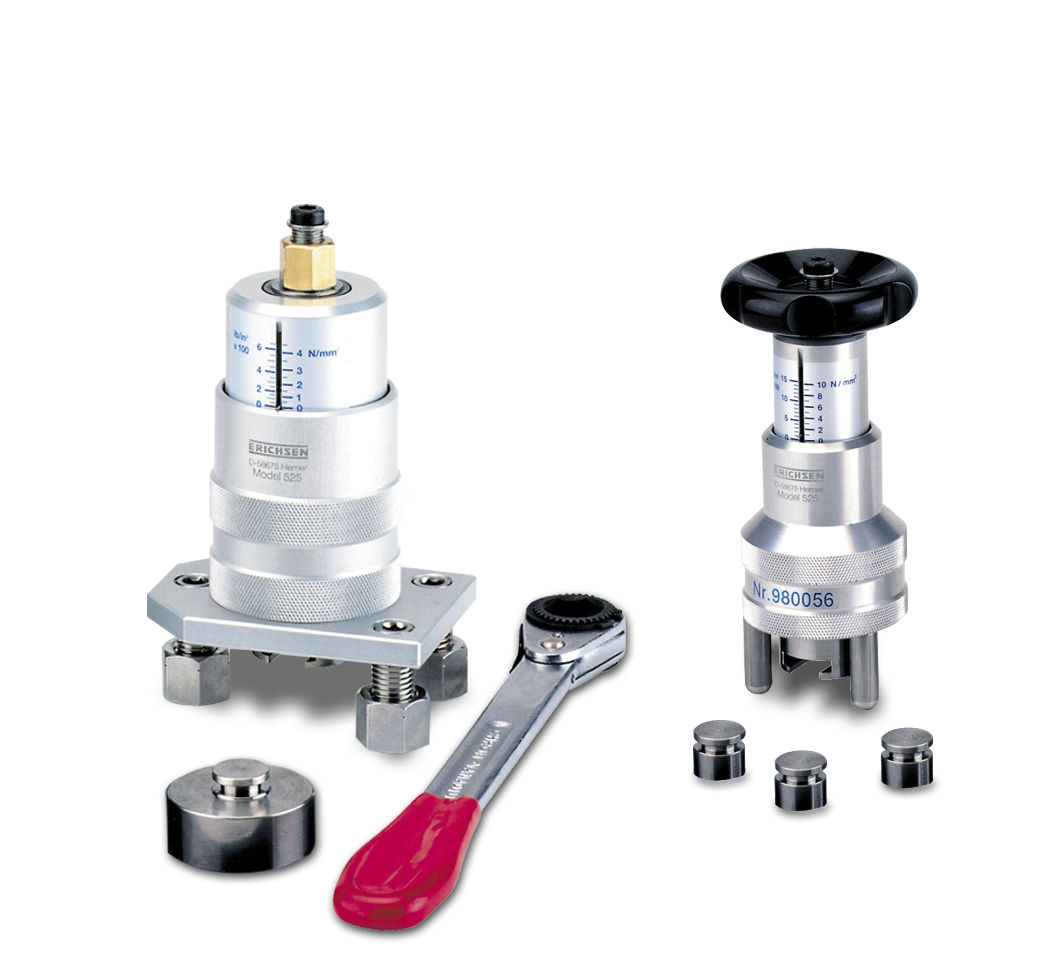

The Model 525 comprises a circular housing with three legs and a concentrically positioned compression spring. A cylinder inserted from the top contains dual scales for reading tensile stress in N/mm² and lb/in² and is secured by a threaded spindle with a handwheel or hexagonal nut. The spindle carries the dolly grip and a pin prevents dolly rotation. When the spindle is tensioned the spring transmits force to the dolly; a maximum-reading pointer records peak force after release. Measuring areas correspond to dolly diameters of 20 mm (314 mm²) and 50 mm (1964 mm²).

Reference Class / Certificate
All versions of Model 525 are supplied with a Manufacturer's Certificate M (factory calibration) which includes:

• Actual and set values of tensile stress
• Product identification
• Test equipment used with calibration status
• Date
• Name of inspector

Scope of delivery

• Adhesion Tester Model 525-5: Measuring range 0 - 5 N/mm² / 0 - 700 lb/in² with dolly Ø 20 mm
• 20 dollies
• Dolly holder
• Base ring
• 2 tubes universal adhesive *
• Cutting tool
• Carrying case
• Operating instructions
• Manufacturer's Test Certificate M

Note: Two-component epoxy adhesives have been successfully used for many materials; suitability for any specific surface must be verified prior to testing.

Standards

• ASTM D 4541

Technical specifications

• Model / Variant: Model 525 (variant shown: 525-5 — Measuring range 0 - 5 N/mm² / 0 - 700 lb/in² with dolly Ø 20 mm)
• Order number (example variant shown): 01430131
• Drive: Manual
• Scale (N/mm²): 0.5 (scale increment)
• Testing force / Measuring range: 0 - 5 N/mm²
• Scale (lb/in²): 100 (scale increment shown) — measuring area full scale 700 lb/in²
• Dolly diameters: 20 mm (standard), also available dolly Ø 50 mm (area 1964 mm²)
• Measuring areas: 314 mm² (20 mm dolly), 1964 mm² (50 mm dolly)
• Weight (complete in carrying case): 3.0 kg
• Weight (instrument separate): 1.2 kg
• Dimensions (in carrying case, approx): 350 x 265 x 85 mm (L x W x H)
• Dimensions (instrument separate): Ø approx. 82 x 185 mm
• Scope of delivery includes 20 dollies, dolly holder, base ring, 2 tubes universal adhesive, cutting tool, carrying case, operating instructions and Manufacturer's Test Certificate M
