Adhesimeter cross hatch cutter CrossScan 295/XVI

The CrossScan 295/XVI is an automatic cross‑hatch cut rating system designed to objectively evaluate adhesive strength of coatings by image‑based analysis and software evaluation. It removes user dependency and assigns cross‑hatch values automatically according to the applicable standard.

Design

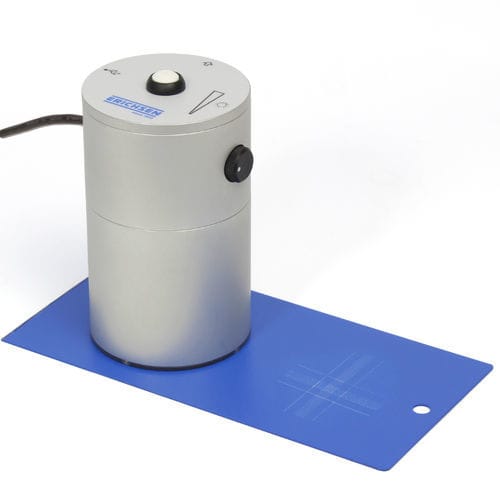

The device comprises a handheld dome placed over the cross‑hatch pattern; it integrates a camera, LED illumination and a potentiometer for lighting intensity control (adjustable 5%–100%). Evaluation is carried out with the supplied evaluation software (PC not included). Direct or diffused lighting can be selected in the software to optimise surface contrast.

Evaluation
Automatic evaluation excludes the width of scratched channels and computes the percentage coating material loss within the defined area of the cross‑hatch pattern. Based on the percentage loss the corresponding cross‑hatch value is automatically assigned according to the standard specification.

Scope of delivery

• CrossScan 295/XVI
• Evaluation software
• Operating instructions

Standards

• ISO 2409

Characteristics / specifications

• Model name: CrossScan 295/XVI
• Order number: 03230131
• Handheld dome with integrated camera and LED lighting
• Lighting intensity adjustable via potentiometer: 5%–100%
• Selectable direct or diffused lighting via software
• Automatic image evaluation excludes scratched‑channel widths and computes percentage coating loss
• Maximum evaluable image section: 20 x 20 mm; visible image section: 25 x 25 mm
• Evaluation performed by included software (PC not included)
• Delivery time: 3–4 weeks
• Price shown is net (net price plus sales tax); sale exclusively to commercial buyers
