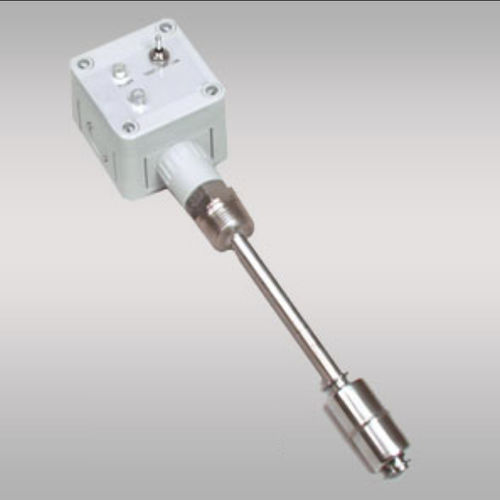

Magnetic float level switch Float-Point™ AV17 series

for liquidsstainless steelcompact

The general purpose, battery powered drum alarm provides reliable liquid level monitoring of 55-gallon drums. The stainless steel float assembly is available in three configurations including high alarm, low alarm or high and low level alarm. In the event of an alarm condition, the battery powered LED will actuate to alert the user. Select the compact alarm which is mounted on the float stem, or the remote alarm which is separated from the float stem with a 72” (1.82m) cable. FEATURES Portable, 9V battery powered LED alarm with test switch Single or two-point alarm for 55, 30 and 20 gallon drums Rugged 316 stainless steel float, stem and mounting plug NEMA 4 enclosure available in compact and remote types Orientation: Vertical Alarm: LED alarm standard Supply voltage: 9 volt battery LED indication: High / low alarm Float material: 316 Stainless steel Stem/fitting mat: 316 Stainless steel Grip rings: P-15-7 Mo SS Float SG: 0.73 (+/- 0.02) Contact rating: 30 watts SPST, 240 VAC (0.14A resistive), 120 VAC (0.28A resistive), 120 VDC (0.07A resistive), 24 VDC (0.28A resistive) Wire type: 2 or 4 conductor, #22 AWG (-S401, -S501, -S601 only) Wire length: 6’ (1.82m) (-S401, -S501, -S601 only) Wire jacket mat.: Halar jacketed (-S401, -S501, -S601 only) Process mount: 3/4” NPT Enclosure rating: NEMA 4 Enclosure mat.: Polycarbonate Classification: General purpose Compliance: CE, RoHS Approvals: UL
