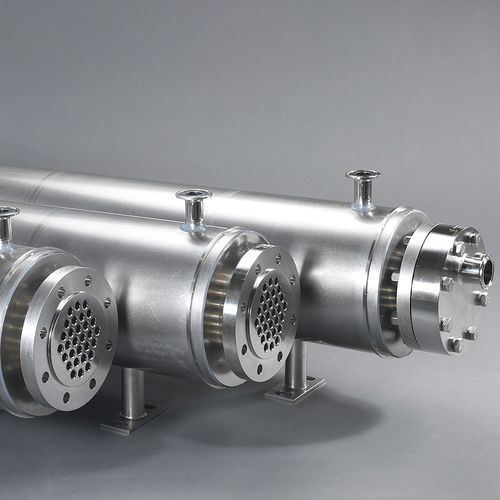

shell and tube heat exchanger / liquid/liquid / gas/liquid / gas/gas
Fluitec mixing + reaction solutions AG



  • Type:

    shell and tube

  • Fluid:

    liquid/liquid, gas/liquid, gas/gas

  • Material:

    stainless steel

  • Other characteristics:

    custom, stainless steel, sterile, shell and tube

  • Applications:

    industrial, for the food industry, for the chemical industry, for the pharmaceutical industry, for mixers, for the food and beverage industry

  • Operating pressure:

    Max.: 100 bar (1,450.38 psi)

    Min.: 0 bar (0 psi)

  • Temperature:

    Max.: 400 °C (752 °F)

    Min.: -100 °C (-148 °F)

  • Power:

    Max.: 1,000 kW

    Min.: 0 kW


Fluitec sterile equipment is specially constructed for the greatest possible separation between the primary and secondary media, with practically total dranage on the product side. Fluitec sterile shell and tube heat exchangers are therefore ideally suited to CIP/SIP plants.

A special surface treatment technique, plus seamless pipes with electropolished interiors, results in surface roughness as low 0.4 µm on the product side.

Fluitec constructs the sterile-heat exchanger in licence of Calorifer Engineering AG.
