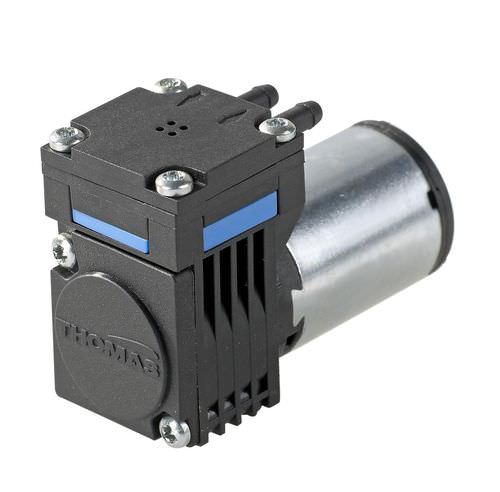

gas pump / with DC motor / self-priming / diaphragm
Aquamarin 1210 series Gardner Denver Thomas

{{requestButtons}}

Characteristics

  • Media:

    for gas

  • Operation:

    with DC motor

  • Priming:

    self-priming

  • Type:

    diaphragm

  • Domain:

    medical, for the printing industry

  • Other characteristics:

    high-efficiency, suction, miniature, analytical, transfer, handling, flow control

  • Flow:

    0.15 l/min, 0.18 l/min (0.0396 us gal/min)

  • Power:

    1.5 W, 1.6 W, 2.3 W, 2.4 W (0 hp)

Description

The Aquamarine 1210 series diaphragm allows suction of mixed gas and liquid media. It has a linear flow control and it uses voltage for this operation. It is a self-priming diaphragm with great efficiency.
It has the capacity of up to 180 ml per minute, maximum pressure height of 80 mH20 and a suction height of 6 mH20.
The possible applications for these diaphragms are with fuel cells, inkjet printers, battery operated systems and medical and analytical applications.
This dry running mini diaphragm pump for liquids has a direct drive with different DC motors. It achieves a great transfer ratio when operating with liquid and gas mixtures.
