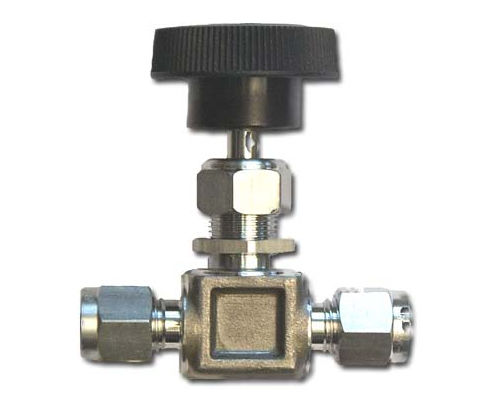

Needle valve FNV seriesmanualshut-offfor oxygen
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- manual
- Function
- shut-off
- Media
- for oxygen
- Applications
- cryogenic
- DN
4.32 mm
(0.17 in)- Pressure
Min.: 0 psi
Max.: 5,000 psi
- Temperature
Min.: -195 °C
(-319 °F)Max.: 232 °C
(450 °F)
Description
Series FNV Needle Valves feature a forged body, integral bonnet design with PTFE and metallic wafer stem packing. This provides leak-tite service from vacuum to the maximum operating pressure. Series FNV are available in Straight and Angle configurations, with NPT and Dual Ferrule Tube connections. The industry standard panel mounting allows the FNV to be a cost effective solution to many applications. Standard metal to metal stem and optional Soft Tip stem provide accurate metering over a wide range of pressures. The Series FNV can be ordered cleaned for Oxygen Service.
