Our new filter for Oil mist extraction has bigger air flow
capacities (1.000 m³/h) and higher filtration efficiencies
(op to 99% at 0.3μm) than the traditional oil mist filters.
Additionally the installation has been made easier.

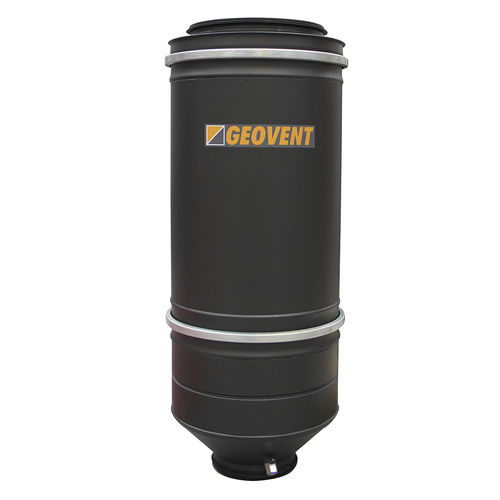

The GFO Filter is used for filtration of oil mists from machines such as CNC lathing, milling and drilling machines
etc., which all use oil types such as cutting oil (regular,
semi-synthetic or synthetic), or water based emulsions.
The filtration efficiency can be up to 99% at 0,3 μm.
The cabinet is made in galvanized steel and lacquered
RAL 9005 Jet black.
Spill Oil
Filtrated liquids can be recycled, back to the machine,
saving money on expensive liquids.
Filter cartridge
The filter cartridge is handling both oil and water saturated mists and smoke.
Filter cartridge change
The lock system on the filter makes for easy cleaning
and replacing of the cartridge.
15-320 GFO 315 – 99 oil mist handling at 0,3 μm. Max air
flow: 800 m³/h. inlet = ø200 mm, discharge= ø350 mm.
15-321 GFO 315 – 99 oil mist handling at 0,3 μm. Max air
flow: 1.000 m³/h. inlet = ø200 mm, discharge= ø350 mm.
Prolonged filter for applications with large filter loading
15-319 GFO-315- SMALL -up to 99% oil mist handling
at 0,3 μm. Max air flow: 300 m³/h. inlet = ø200 mm,
discharge = ø315 mm. Prolonged filter for applications
with large filter loading.
