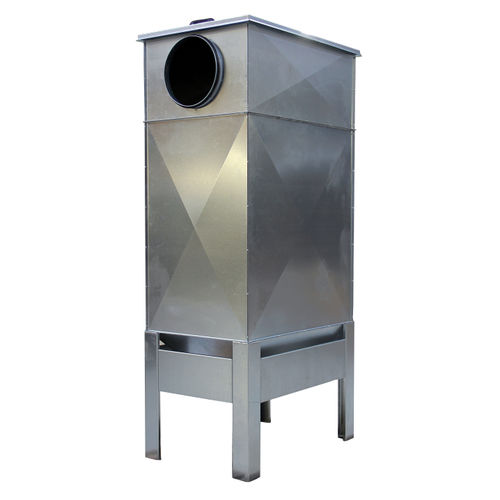

Oil filter GFO XT
oil mistcartridge

oil filter
oil filter
oil filter
oil filter
Add to favorites
Compare this product


Characteristics

Designed for
oil, oil mist
Filtration element
cartridge
Flow

Max.: 10,000 m³/h (353,146.667 ft³/h)

Min.: 1,500 m³/h (52,972 ft³/h)

Description

GFO XT - up to 99% filtration of oil mists. GFO XT – up to 99% filtration of oil mists. • Q recommended from 2.500 to 10.000 m³/h. • Q peak load: up till 14.400 m³/h. • From 30 to 120 m² polypropylene filter cartridge. • 20 liters reservoir with discharge tap and sight glass for oil level control. • Comes in galvanized finish. • Pre-filtration can be installed. The filter is used as zone filter for large processing centres, for example, or as central filter for several lathes/cutters, etc. The filter has a 6 m² polyproplylene filter cartridge. Max. airflow: 3,500 m³/h. Recommended end pressure drop = 1,800 Pa. H:1500 mm, W: 300 mm, D: 300 mm, connection/outlet = ø250 mm nipple. 20 litres reservoir with discharge tap and sight glass for oil level control. 4 sizes available Filter area 30 m² - Max. 2.500 m³/h Filter area 60 m² - Max. 5.000 m³/h Filter area 90 m² - Max. 7.500 m³/h Filter area 120 m² - Max. 10.000 m³/h

Catalogs

GFO XT
GFO XT
1 Pages
Geo XT
Geo XT
1 Pages
