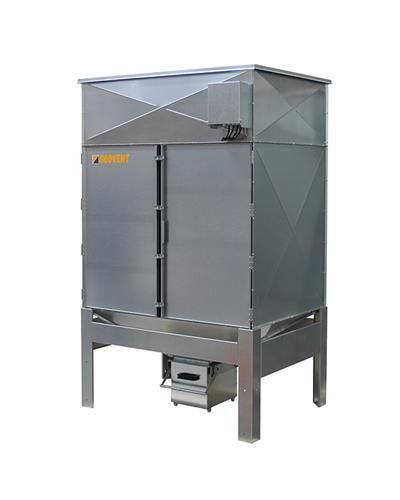

Air filter cartridge GFB2 Filter

dustgalvanised steeldust control

Product overview
The GFB2 filter is an industrial air filtration unit for processes such as welding, grinding, sanding, plasma/laser cutting and powder coating. It captures up to 99.9% of hazardous particles from extracted air and is available in versions with airflow capacities up to 7,200 m³/h. The unit features an automatic compressed-air pulse cleaning system, a filter control system (timer-based standard; differential pressure control optional), and a galvanised steel enclosure for extended service life.

What do you get?

• High-efficiency filtration removing up to 99.9% of hazardous particles from extracted air.
• Suitable for welding, grinding, sanding, plasma/laser cutting and powder coating applications.
• Airflow options up to 1,800 / 3,600 / 5,400 / 7,200 m³/h; units can be paralleled to increase capacity.
• Automatic cartridge cleaning by compressed-air pulses to maintain performance.
• Galvanised steel construction for durability.
• Easy maintenance via hinged double-door access and removable collection bucket.
• Optional accessories: sound insulation, water separator, leg extension with larger collection bucket.

Design & maintenance details
The automatic cleaning system uses compressed-air pulses to dislodge dust from the filter cartridges, ensuring consistent filtration performance and prolonged cartridge life. A timer-based filter control is supplied as standard; differential pressure control is available on request. Hinged double doors provide quick access to filter cartridges and the collection bucket for fast emptying and servicing. The unit is designed for indoor installation; outdoor placement is possible if mounted under a protective roof to avoid condensation and weather exposure.

Included / optional accessories and configurations

• Optional sound insulation for reduced noise levels.
• Optional water separator.
• Optional leg extension with larger collection bucket (54 L).
• Capability to connect multiple units in parallel to increase total capacity.

Technical specifications

• Material: Galvanised steel
• Installation: Indoor / Outdoor (outdoor under protective roof recommended)
• Max. air volume: 1,800 m³/h; 3,600 m³/h; 5,400 m³/h; 7,200 m³/h
• Voltage: 230 V
• Power: 30 W
• Compressed air (Supply): 6 Bar
• Compressed air (Consumption): 3 Liter
• Filter area: 30 m²; 60 m²; 90 m²; 120 m²
• Connection (inlet): ø315 mm; ø315 mm; ø400 mm; ø500 mm (depending on capacity/version)
• Connection (outlet): ø315 mm; ø315 mm; 2 x ø315 mm; 3 x ø315 mm (depending on capacity/version)
• Dimensions (L x W x H): 635 x 935 x 2,035 mm; 635 x 935 x 2,035 mm; 935 x 935 x 2,035 mm; 935 x 1,230 x 2,035 mm (model-dependent)
• Weight: 125 kg; 155 kg; 180 kg; 225 kg (model-dependent)
• Filter cartridges cleaned by compressed-air pulses (automatic cleaning)
• Filter control: timer-based standard; differential pressure control optional
• Maintenance features: hinged double-door access, removable collection bucket
