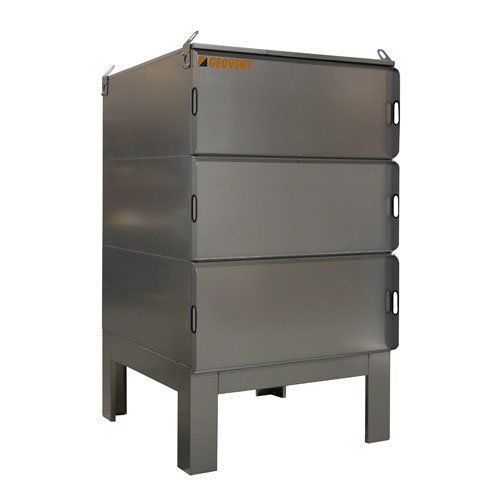

Activated carbon adsorber GFC

Overview The Geovent GFC is an activated-carbon adsorption filter unit designed to remove toxic gases, odours, aerosols and volatile organic compounds (VOCs) from industrial air streams. It uses high‑porosity activated carbon pellets to adsorb and neutralise contaminants and is suitable for return air, intake air or recirculated air. The design minimises pressure drop and supports modular installation to match process requirements.

What do you get?

• Efficient removal of toxic gases, odours, aerosols and VOCs using high‑porosity activated carbon.
• Minimal pressure loss to preserve airflow and reduce energy consumption.
• Flexible installation: single unit, parallel arrangement for higher capacity, or series configuration for staged purification.
• Four available sizes with activated carbon capacities of 75, 150, 225 and 300 kg.
• Galvanised steel construction for improved corrosion resistance in industrial environments.
• Suitable for indoor installation; can be installed outdoors if protected from severe weather.
• Choice of activated carbon types (including impregnated grades) to target specific pollutants such as mercury.

Product information The GFC unit is intended for purifying return, intake or circulated air in industrial settings. Single units handle specific airflow classes; units can be combined in parallel to increase volumetric capacity or arranged in series to enhance pollutant removal. Activated carbon type and impregnation can be selected to address targeted contaminants. Construction in galvanised steel reduces corrosion risk; installation is primarily indoor, with outdoor options when adequate protection is provided.

Technical specifications

• Material: Galvanised steel
• Installation: Indoor / Outdoor (protected)
• Max. air volume: 1,950 m³/h; 2,800 m³/h; 3,400 m³/h; 4,000 m³/h
• Activated carbon quantity: 75 kg; 150 kg; 225 kg; 300 kg
• Connection (inlet): ø250 mm
• Connection (outlet): ø250 mm
• Dimensions (LxWxH): 962 x 900 x 1,612 mm; 1,262 x 1,200 x 1,612 mm; 1,262 x 1,200 x 2,112 mm; 1,262 x 1,200 x 2,112 mm
• Weight: 181 – 280 kg
