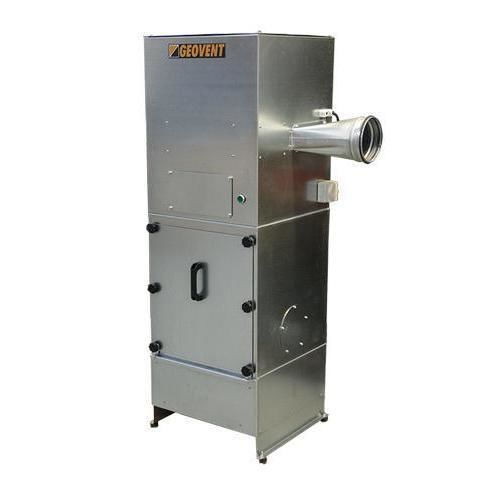

Cartridge dust collector CFU-1000

manual cleaningfine dustfor grinding dust

Overview
The Dustbox CFU-1000 is a compact dust extraction unit manufactured in galvanised steel for the removal of grinding dust and fine particles. It is suitable for grinding rooms with their own fan or for connection to a central extraction system. The unit is designed for indoor installation and a small footprint where space is limited.

Key features

• Compact footprint for installation in confined workshop areas.
• Galvanised steel construction for industrial environments.
• Filtration efficiency up to 99.9% at 0.3 μm (F9 cartridge).
• 10 m² antistatic filter cartridge to reduce pressure drop and extend service intervals.
• Optional integrated fan for standalone operation.
• Front access panel for inspection, cleaning and filter replacement.
• Vibration-dampened cabinet and pads for reduced noise and wear.

Performance and operation
The unit delivers an airflow range of 200–1,500 m³/h and a typical noise level of 55–60 dB. It includes a 38 L collection bucket for dust disposal. Optional accessories: sound insulation and manual compressed-air cleaning. Connections: inlet and outlet ø160 mm. Intended for indoor industrial use.

Technical data (table)
Material: Galvanised steel
Installation: Indoor
Max. air volume: 1,500 m³/h
Airflow range: 200–1,500 m³/h
Filtration efficiency: up to 99.9% at 0.3 μm
Filter type and area: Antistatic cartridge, 10 m² (F9)
Voltage: 3×400 V
Power: 1.1 kW
Compressed air (supply): 6 Bar
Compressed air consumption: 3 Liter
Connection (inlet): ø160 mm
Connection (outlet): ø160 mm
Collection bucket capacity: 38 L
Dimensions (LxWxH): 500 x 500 x 1,510 mm
Weight: 90 kg
Noise level: 55–60 dB

Technical specifications

• Material: Galvanised steel
• Installation: Indoor
• Maximum air volume: 1,500 m³/h
• Airflow range: 200–1,500 m³/h
• Filtration efficiency: up to 99.9% at 0.3 μm
• Filter type and area: Antistatic cartridge, 10 m² (F9)
• Voltage: 3×400 V
• Power: 1.1 kW
• Compressed air supply: 6 Bar
• Compressed air consumption: 3 Liter
• Inlet / outlet connection: ø160 mm
• Collection bucket capacity: 38 L
• Dimensions (LxWxH): 500 x 500 x 1,510 mm
• Weight: 90 kg
• Noise level: 55–60 dB
• Vibration-dampened cabinet and vibration pads
• Front-removable panel for easy maintenance
