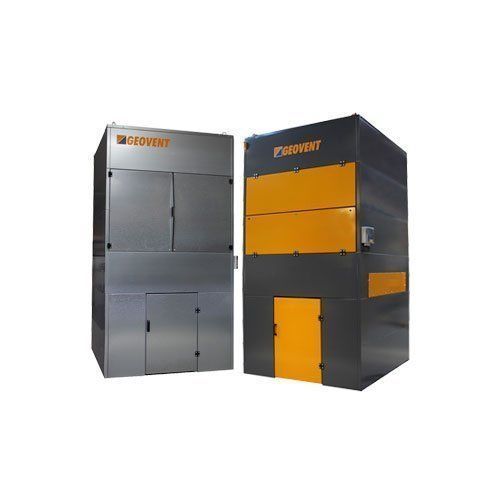

Filter unit with cartridge GFH

cartridgeparticulatesmoke

Overview
GeoFilter GFH and GFH PLUS are cartridge-based industrial filters for the retention of dust and smoke in manufacturing and processing environments. Each unit provides up to 15,000 m³/h airflow and the design supports parallel installation of multiple units for larger capacities. Units are available in galvanised or painted steel and include an integrated compressed-air pulse cleaning system and a mobile dust collection bin.

What do you get?

• High-efficiency filtration for dust and smoke in industrial processes.
• Airflow up to 15,000 m³/h per unit; modular scalability with parallel units.
• Integrated compressed-air pulse cleaning to sustain filter performance.
• Galvanised or painted steel construction for industrial use.
• Standard timer-based control unit; differential-pressure control available as an option.
• Accessible cartridge design and easy-to-move dust collection bin for simplified maintenance.
• Wide choice of pleated cartridge media to match application-specific filtration requirements.

Product information
GFH and GFH PLUS are engineered for medium to large-scale filtration tasks. The pulse-jet compressed-air cleaning system dislodges accumulated dust from the cartridge media to maintain consistent airflow and reduce manual cleaning intervals. Units are suitable for indoor installation (recommended) or outdoor placement under shelter to prevent condensation. Typical utilities: 230 V AC power and a clean, dry compressed-air supply (recommended 3.5–6 bar).

Technical data (table)
Material: Galvanised steel
Installation: Indoor / Outdoor
Max. air volume: 3,360 – 15,000 m³/h
Voltage: 230 V
Power: 30 W
Compressed air (Supply): 6 Bar
Compressed air (Consumption): 5 Liter
Filter area: 48 - 190 m²
Connection (inlet): 1,200 x 200 mm
Connection (outlet): ø450 mm / 2 x ø450 mm
Dimensions (LxWxH): 1,660 x 850 x 2,540 mm; 1,660 x 1,210 x 2,540 mm; 1,660 x 1,660 x 2,540 mm
Weight: 500 – 640 kg

Technical specifications

• Model family: GFH and GFH PLUS
• Max airflow per unit: up to 15,000 m³/h (modular: multiple units can be paralleled)
• Filter cleaning: compressed-air pulse cleaning system (timer-based standard)
• Control: standard control unit with timer; differential-pressure control optional
• Materials: galvanised or painted steel construction
• Power supply: 230 V AC
• Compressed air: clean, dry supply; typical 3.5–6 bar (table lists 6 bar supply, 5 L consumption per clean)
• Filter area: 48–190 m² depending on cartridge
• Inlet / outlet sizes: inlet 1,200 x 200 mm; outlet ø450 mm (single or 2 x ø450 mm)
• Typical weights: 500–640 kg
• Dimensions (examples): 1,660 x 850 x 2,540 mm; 1,660 x 1,210 x 2,540 mm; 1,660 x 1,660 x 2,540 mm
