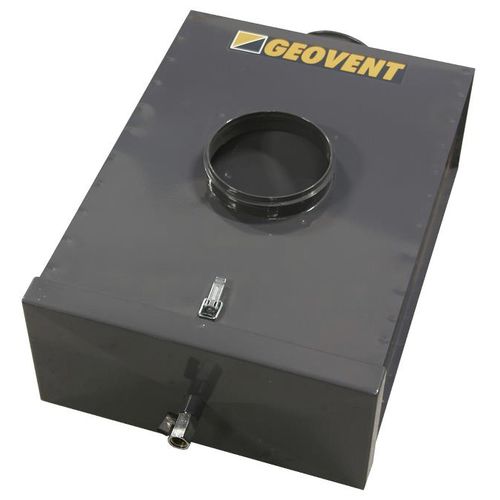

Oil mist filter GeoFilter Oil

basketpressureindustrial

Short description
The GeoFilter Oil removes oil mist produced by machining processes and prevents condensation in central extraction piping. Designed for conventional and CNC machines, it is available in two diameters: ø100 and ø160. The unit includes a detachable stainless-steel filter mat and an integrated oil drainage tap to return captured oil to the machine, simplifying maintenance and reducing waste.

What do you get?

• Efficient removal of oil mist from machining operations.
• Reduced risk of condensation in central piping systems.
• Two size options (ø100 and ø160) to match different machines and performance levels.
• Compatibility with conventional lathes, milling machines, wet grinders and CNC machining centres.
• Easy maintenance with a detachable stainless-steel filter mat.
• Integrated oil drainage tap for returning collected oil to the machine.
• Powder-coated steel construction for industrial use.

Product information
The GeoFilter Oil is intended to capture oil mist at the source or in local extraction lines before it condenses in the central system. The ø100 version is suitable for conventional lathes, smaller milling machines and wet grinders; the ø160 version is designed for high-performance CNC centres and larger lathes. Filter area: 0.13 m² (ø100) and 0.19 m² (ø160). The unit features a removable bottom with an integrated tap to collect and return oil to the machine. For best results, install an oil separator at each machine. The GeoFilter Oil can be used with extraction arms to improve point-source capture.

Technical data
Material: Powder-coated steel
Installation: Indoor
Max. air volume: 400 – 600 m³/h
Pressure drop: 100 Pa at 400 m³/h
150 Pa at 600 m³/h
Connection (Inlet): ø100 mm / ø160 mm
Connection (Outlet): ø100 mm / ø160 mm
Dimensions (LxWxH): 400 x 400 x 200 mm (ø100) / 400 x 600 x 200 mm (ø160)
Weight: 7.3 – 9.5 kg

Features / Technical specifications

• Sizes available: ø100 and ø160.
• Filter area: 0.13 m² (ø100) / 0.19 m² (ø160).
• Detachable stainless-steel filter mat for easy cleaning and maintenance.
• Integrated oil drainage tap for oil return to the machine.
• Powder-coated steel construction for industrial environments.
• Suitable for conventional lathes, milling machines, wet grinders and high-performance CNC centres.
• Recommended to pair with an oil separator per machine for optimal performance.
