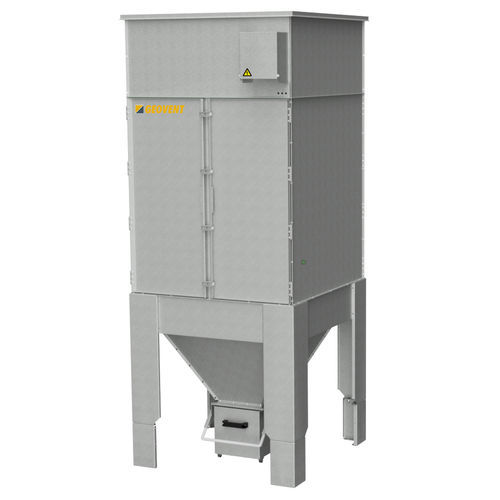

Cartridge dust collector GFB2

pulse-jet backflowfor cutting machineshigh-efficiency

Overview
The GFB2 filter unit is an industrial dust filtration system designed for extraction applications such as welding, grinding, sanding, plasma/laser cutting and powder coating. Configurable for airflow rates up to 7,200 m³/h, the unit uses cartridge filtration with automatic pulse-jet cleaning and a steep hopper to improve dust discharge into the collection bucket.

Key features

• Filtration efficiency: removes up to 99.9% of hazardous particles
• Steep hopper design to promote dust fall into the collection bucket
• Available configurations up to 7,200 m³/h; multiple units can be connected in parallel
• Automatic compressed-air pulse cleaning for cartridge filters
• Galvanised steel construction for industrial environments
• Double access doors and removable collection bucket for simplified maintenance
• Optional accessories: sound insulation, water separator, timer and differential pressure control
• Suitable for indoor installation; can be placed outdoors under a protective roof

What do you get?

• Efficient removal of hazardous particles (up to 99.9%) from extracted air
• Adaptable use for welding, grinding, sanding, plasma/laser cutting and powder coating
• Steep hopper to aid dust discharge into the removable collection bucket
• Airflow configurations up to 7,200 m³/h and parallel connection option
• Automatic compressed-air pulse cleaning system
• Durable galvanised steel construction and easy-access maintenance features
• Optional extras: sound insulation, water separator, timer/differential pressure control

Technical data (table)
Material: Galvanised steel
Installation: Indoor / Outdoor (under protective roof)
Max. air volume: 1,800 m³/h
3,600 m³/h
5,400 m³/h
7,200 m³/h
Voltage: 230 V
Power: 30 W
Compressed air (Supply): 6 Bar
Compressed air (Consumption): 3 L
Filter area: 30 m²
60 m²
90 m²
120 m²
Connection (inlet): ø315 mm
ø315 mm
ø400 mm
ø500 mm
Connection (outlet): 1 x ø315 mm
1 x ø315 mm
2 x ø315 mm
3 x ø315 mm
Dimensions (L x W x H): 635 x 935 x 2,330 mm
635 x 935 x 2,330 mm
935 x 935 x 2,330 mm
935 x 1,230 x 2,330 mm
Weight: 145 kg
145 kg
195 kg
245 kg

Technical specifications

• Material: Galvanised steel
• Installation: Indoor or outdoor (under protective roof)
• Max. air volumes available: 1,800 / 3,600 / 5,400 / 7,200 m³/h
• Voltage: 230 V
• Power: 30 W
• Compressed air supply: 6 Bar (consumption: 3 L)
• Filter area options: 30 / 60 / 90 / 120 m²
• Inlet connections: ø315 / ø400 / ø500 (depending on configuration)
• Outlet connections: configurations with 1–3 x ø315 mm
• Dimensions (L x W x H) by configuration: 635 x 935 x 2,330 mm; 935 x 935 x 2,330 mm; 935 x 1,230 x 2,330 mm
• Weight by configuration: 145 / 195 / 245 kg
• Automatic compressed-air pulse cleaning for cartridges
• Steep hopper design for improved dust discharge into collection bucket
• Maintenance: double access doors and removable collection bucket
• Optional controls: timer standard; differential pressure control on request
