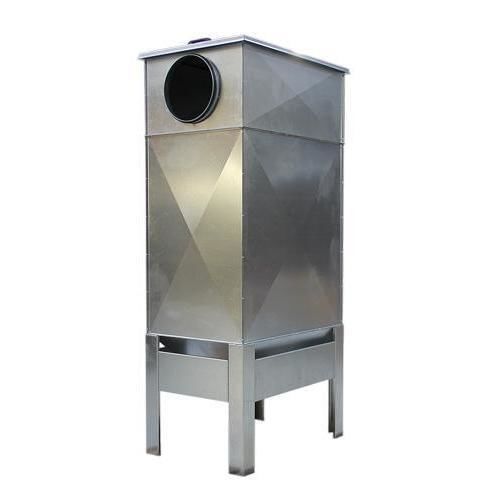

Oil mist collector GFO2 XT

filtration mediafor machine tools

Overview The GFO2 XT is an oil mist filter for industrial machining environments. It delivers up to 99% filtration efficiency for oil mists and is suitable for servicing multiple lathes, cutters and machining centres. The unit uses polypropylene cartridge filters with a large filtration area and includes an integrated oil reservoir with a drain tap. It is designed for indoor installation and for continuous production environments; for uninterrupted operation, two units can be used alternately (switch every three hours under load). Compatible with pure oil, semi-synthetic, synthetic and water-based cutting fluids. Outdoor installation is not recommended due to potential oil thickening at low temperatures.

What do you get?

• Up to 99% removal of oil mist particles to improve workplace air quality and safety.
• Capacity range suitable for industrial airflow (typical operating range: 2,400–9,600 m³/h).
• Polypropylene cartridge filter with 4.9 m² filtration surface per cartridge for extended life and performance.
• Built-in oil reservoir with drain tap for simple oil discharge and maintenance.
• Galvanised steel construction for corrosion resistance in industrial settings.
• Compatible with pure oil, semi-synthetic, synthetic and water-based cutting oils.
• Possibility of parallel installation to increase uptime and maintain filtration efficiency.
• Recommended operation practice: alternate two units every three hours under load and maintain nominal load around 70% of maximum capacity.

Technical data

• Material: Galvanised steel
• Installation: Indoor
• Max. air volume: 2,400 – 9,600 m³/h
• Filter area: 4.9 m² (per cartridge)
• No. of filter pieces: 3 – 12 pcs.
• Pressure drop: 1,000 Pa
• Connection (Inlet): ø315 – ø500 mm
• Connection (Outlet): ø315 mm
• Weight: 100 – 160 kg
