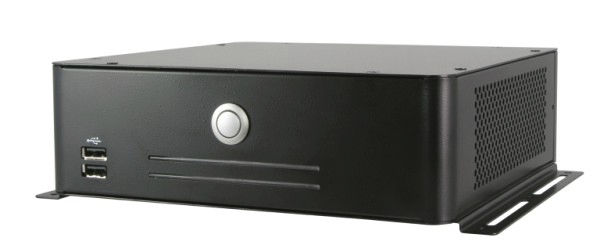

Compact fanless embedded computer
Intel® Atom™ N270, 1.6 GHz, max. 2 GB | CMI300-810 IBASE TECHNOLOGY USA INC

FEATURES

Fanless system supports IBASE MI810F Mini-ITX motherboard
Onboard Intel® Atom™ Processor N270,1.6GHz
Available in black color
One 2.5" HDD
Light and small
2x USB in front easy for connection
Rear panel I/O for USB, VGA, DVI, COM, KB/MS, LAN and DC-in jack
HDD status LED bar and Power button with LED in the front

CMI300-810 SPECIFICATIONS

System Mainboard MI810F

CPU Type
Intel® Atom™ Processor N270
System Speed 1.6GHz

Memory
2x DDR2 DIMM, Max. 2GB

Construction Steel
Chassis Color Black

Front Panel External I/O
Power button, 2x USB Ports

Rear Panel External I/O
1x VGA, 1x DVI, 2x COM, 6x USB ports, 2x RJ45 connectors, PS/2 KB/MS connector, Audio, DC-in jack

Storage
1x 2.5" HDD

Power Supply
60W power adaptor

Mounting
Desktop or wall mount

Dimensions
200mm(W) x 200mm(D) x 62mm(H)

Operating Temperature
0°C~ 45°C (32°F~113°F)
Storage Temperature
-20°C~ 80°C

Relative Humidity
5 ~ 90% @ 45°C, (non-condensing)

Vibration
Non-Operating : 1.0 grms / 5~500Hz / random
Operating : 0.25 grms / 5~500Hz / random
