Linear axis with positioning system

linear motor-drivenwith servo-motortiming belt

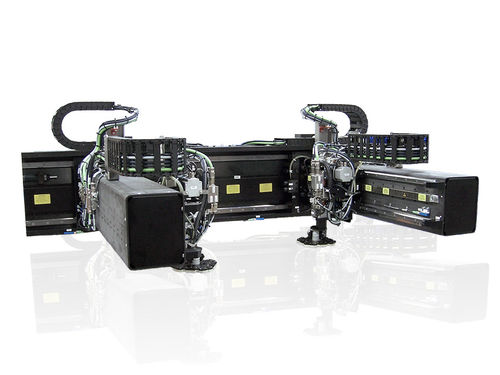

Two carbon fibre axes with linear motor • 8-axis system with carbon fibre axes • For positioning/Pick & Place applications Demands • Compact shape for the fastest Pick & Place applications • Suitable for clean rooms ISO class 5 (according to DIN EN ISO 14644-1) • Use in 3-shift operation on 7 days/week • Redundant design of the drive system • Quickly change of wear parts such as energy chains and cables • Integrated collision protection Implementation • Inherently rigid double linear motor axis with two carbon fibre axes • Linear magnetic measuring systems • Intermediate levels for easy changing of trailing chains and cables • Energy chains with free space for additional cables Overall system: • Load: 0,5 kg • Positioning resolution: 1 µm • Reproducibility: 2 µm • Absolute accuracy: ±20 µm • Repeatability height/side: ±50 µm / ±100 µm • Maximum velocity: 2 m/s • Maximum acceleration: 10 m/s² with 0,5 kg load X-axis: • Direct drive with linear motor LM-050 • Travel: 1150 mm Y-axes: • Direct drive with linear motor LM-050 PLM-025 • Travel: 650 mm Z-axes: • Toothed belt with servo motor • Travel: 50 mm • Positioning resolutiong: 1,125 µm • Reproducibility: ±20 µm • Absolute accuracy: ±50 µm • Maximum velocity: 0,5 m/s • Maximum acceleration: 10 m/s² D-axes: • Slewing range: nx360° • Positioning resolution: 3,24 arcsec • Reproducibility: <1 arcmin • Maximum velocity: 180°/s • Maximum acceleration: 3600°/s²
